Providing Parking Solutions

Minimum Space,
maximum parking.

Fully hydraulic and PLC-controlled parking systems — stack, pit, puzzle and tower. Designed, fabricated and installed to your site conditions.

See our services Get a quote
Animated illustration of Kay9 parking systems A looping illustration that builds each Kay9 system in turn: stack, pit stack, puzzle, tower and bike parking. Full written specifications are in the Services section. YOUR FOOTPRINT PLC control · pallets shift sideways and up · max. collection time 90s Lifting channel in the middle · pallets drawn to either side by mechanical hands Three level parking — 14 bikes in 5.4 metres of space
Two & Three Level Stack Two cars where one used to fit.

Systems available for cars and 2-wheelers

Services we offer

Sizes can be varied as per the client requirements and site conditions.

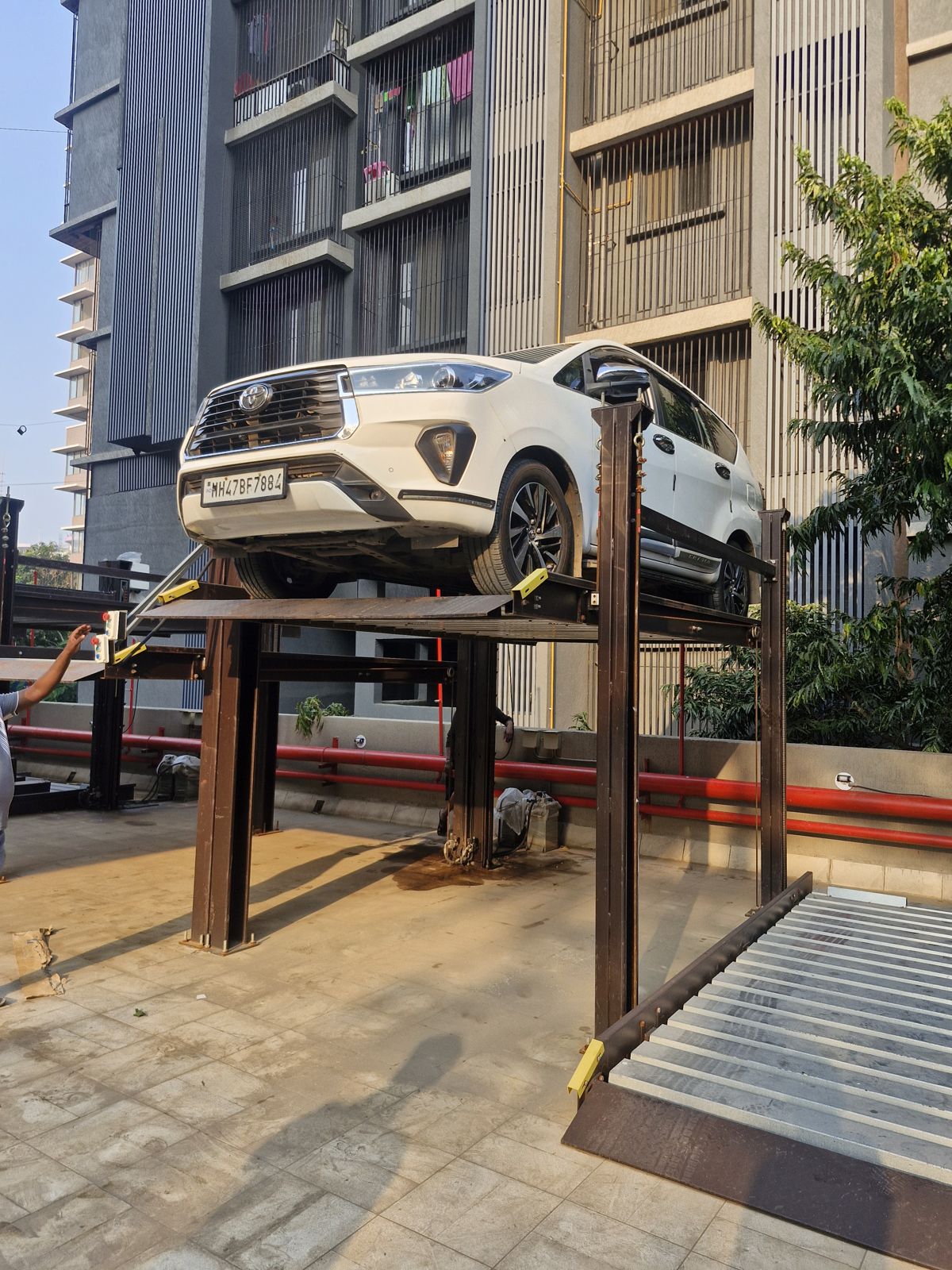

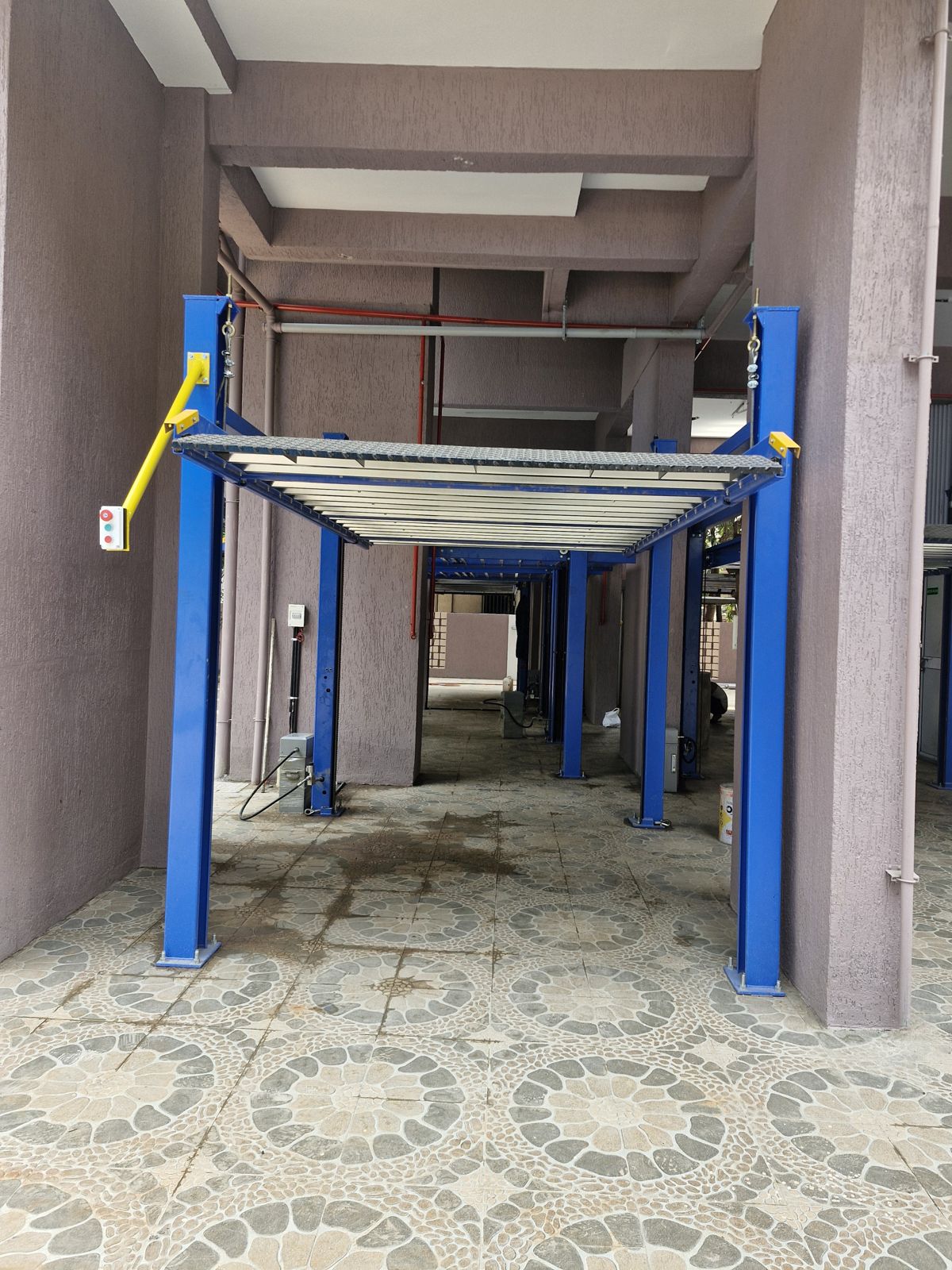

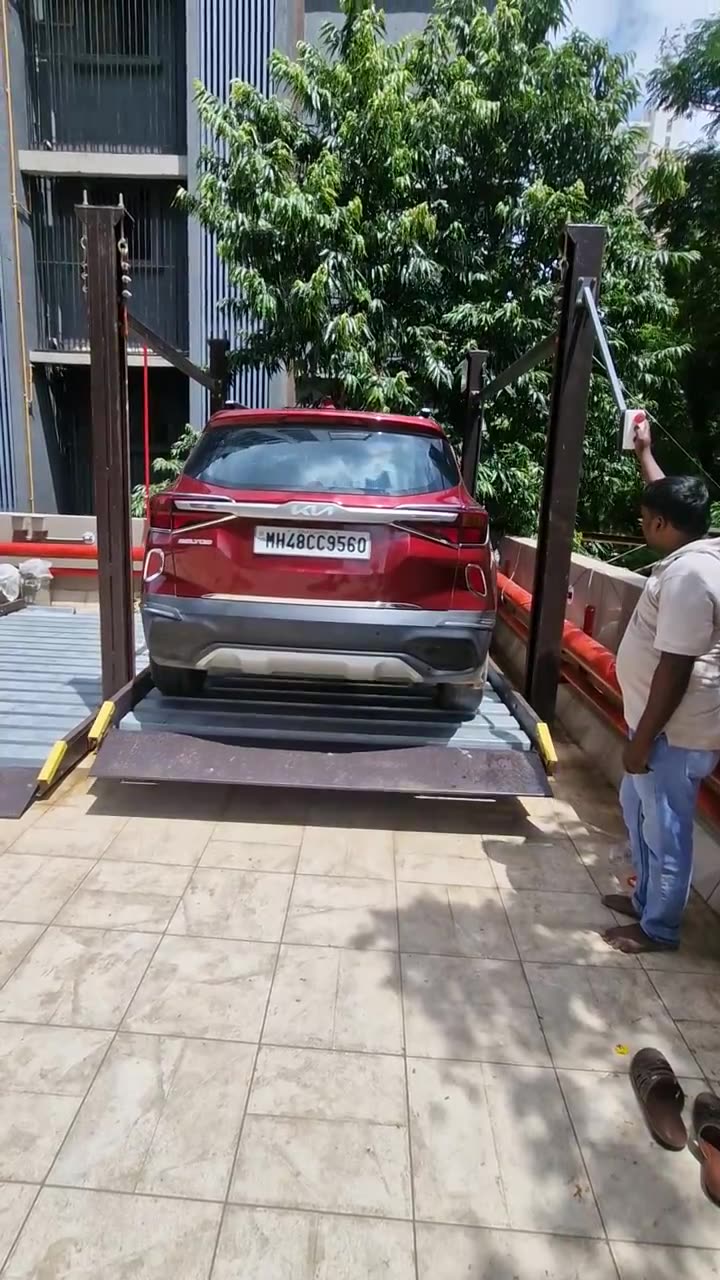

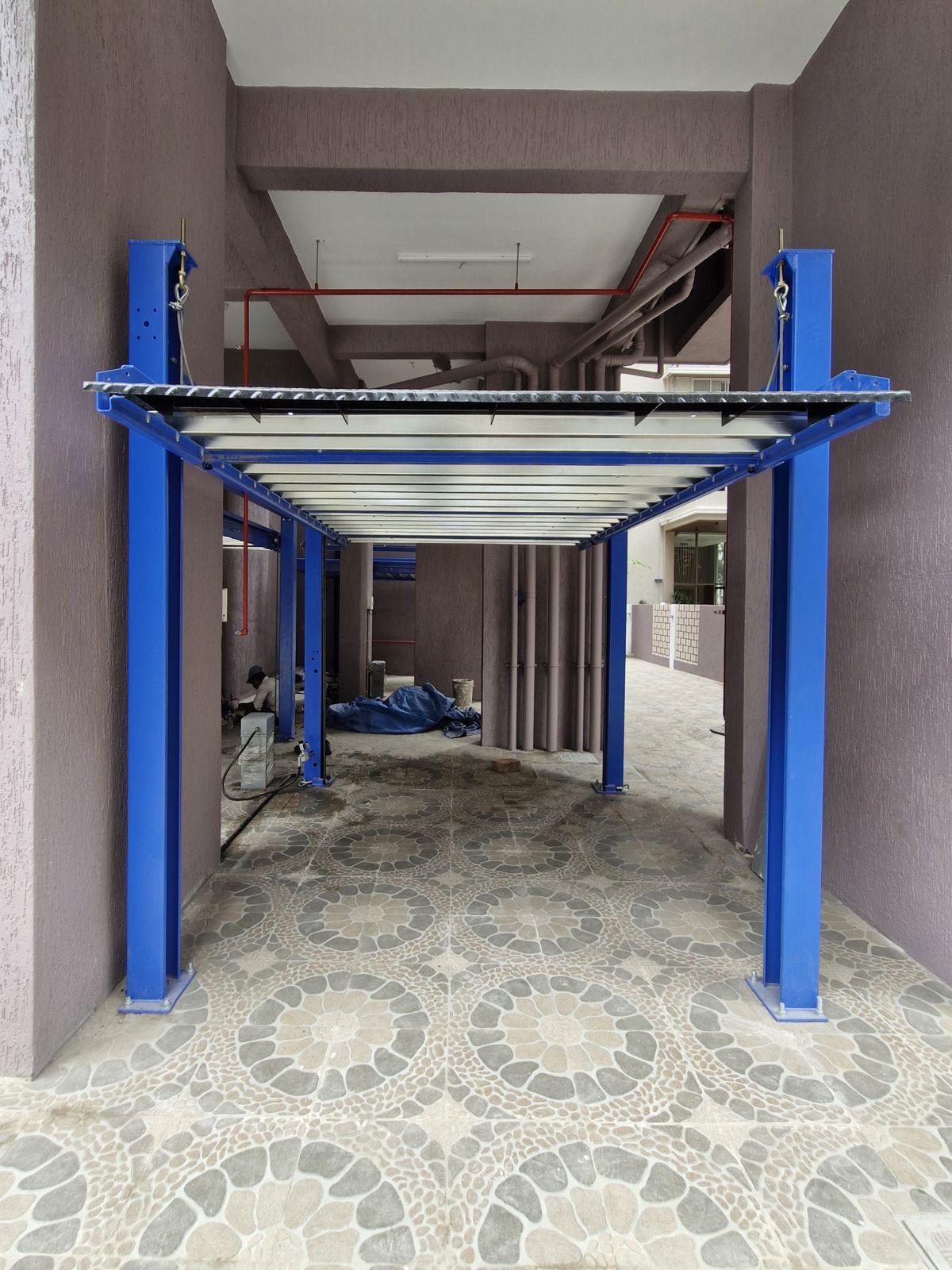

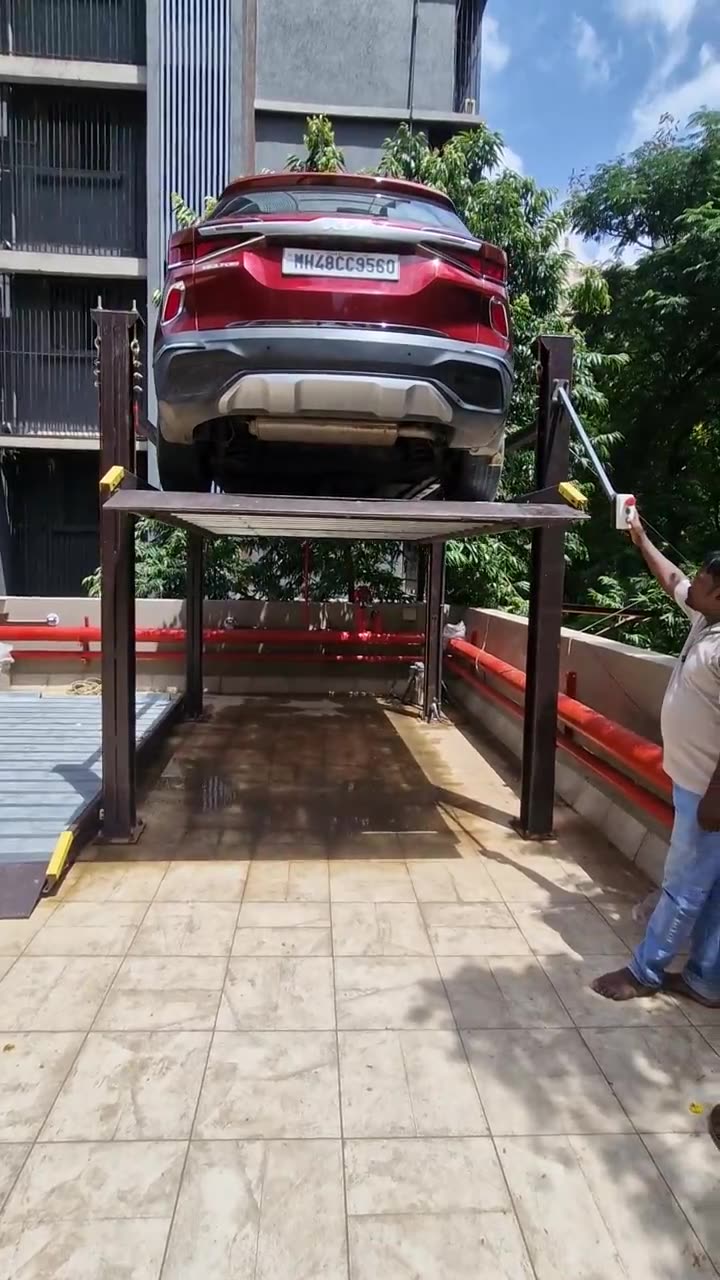

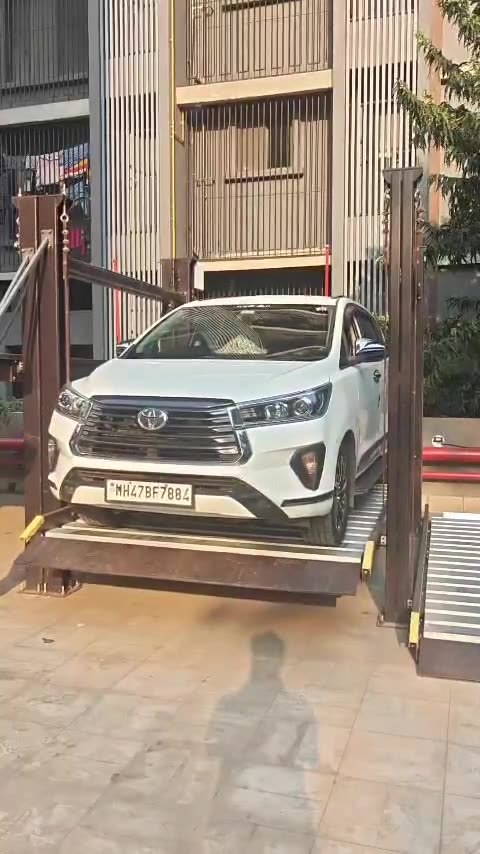

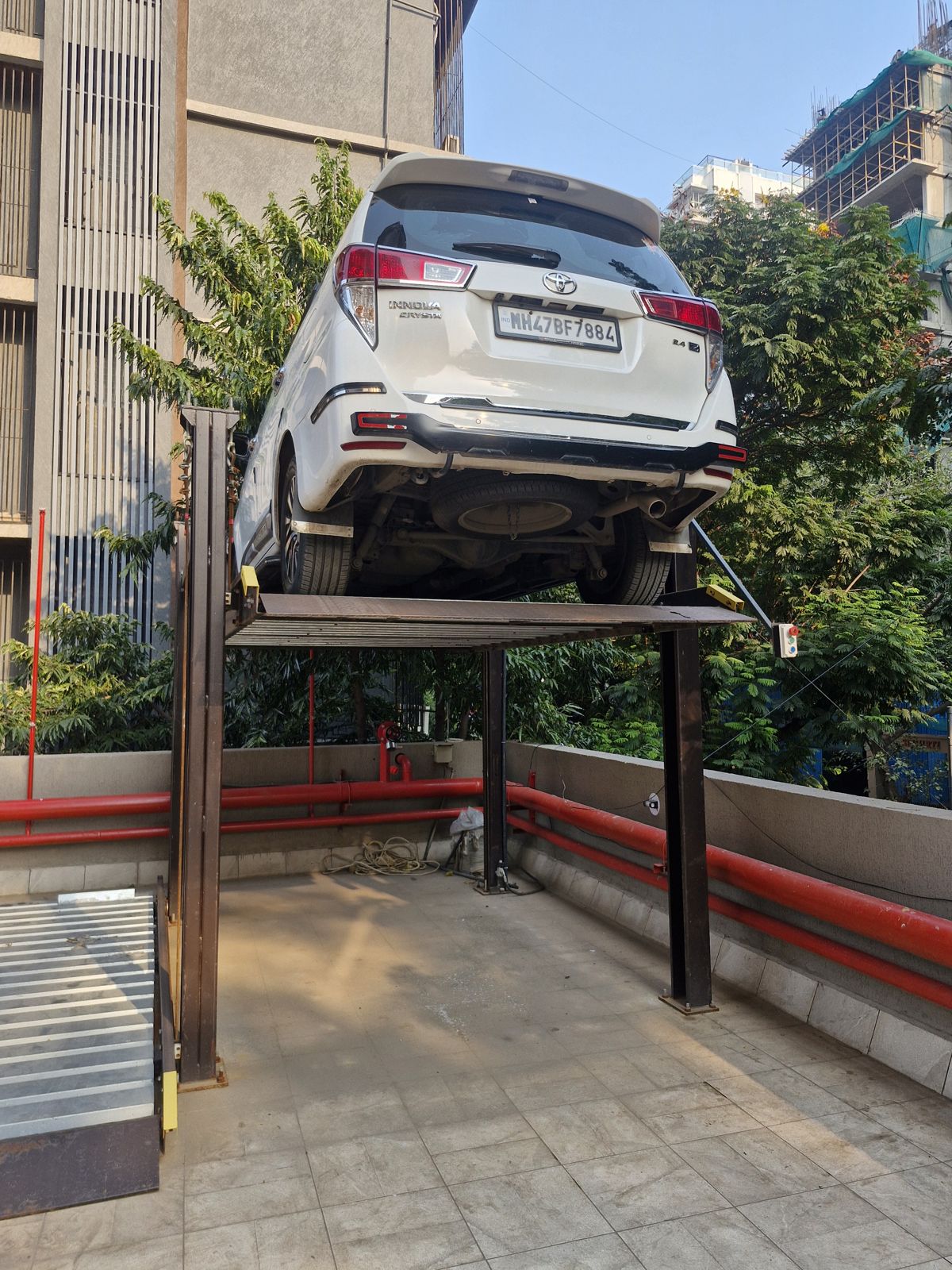

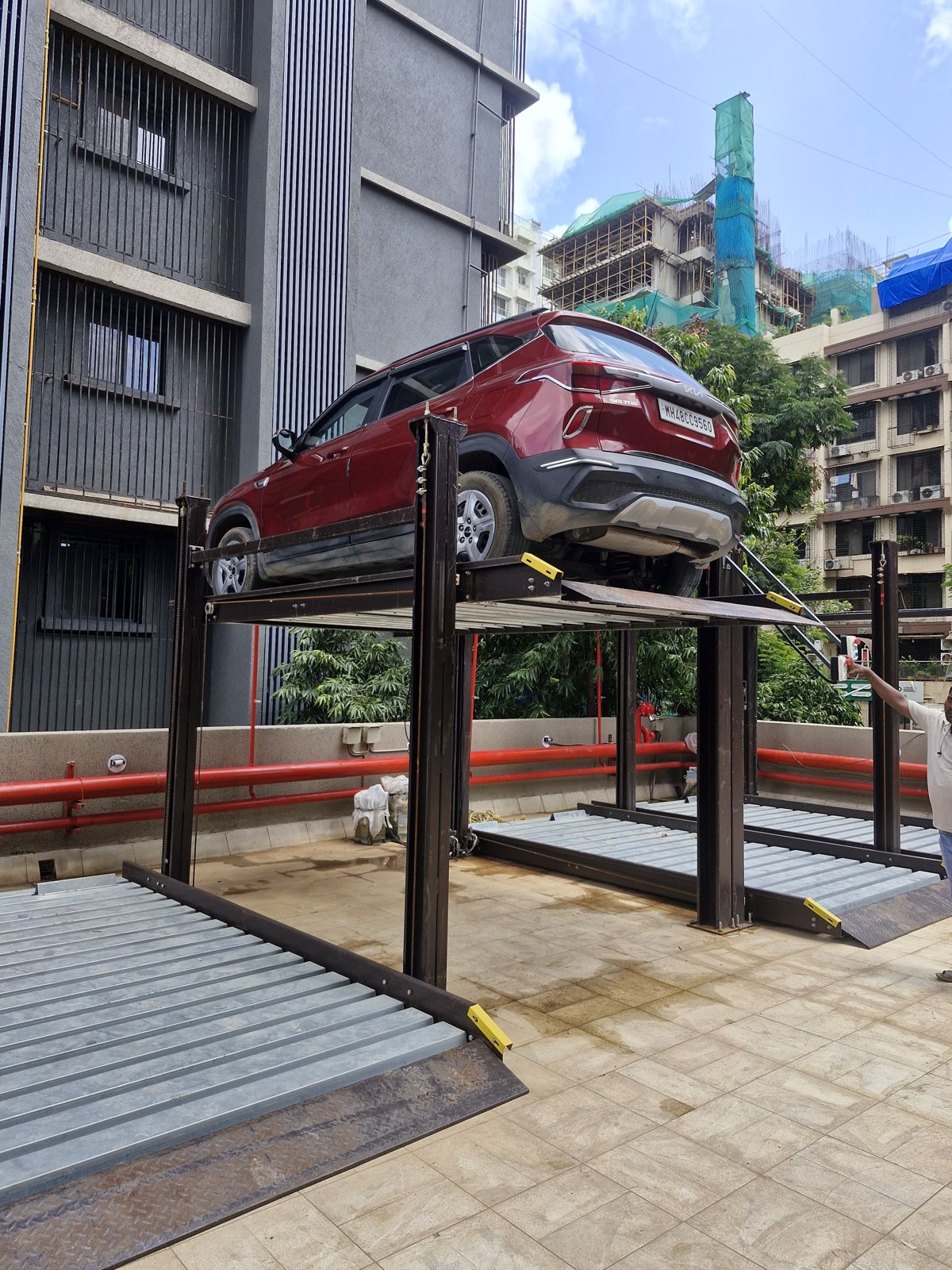

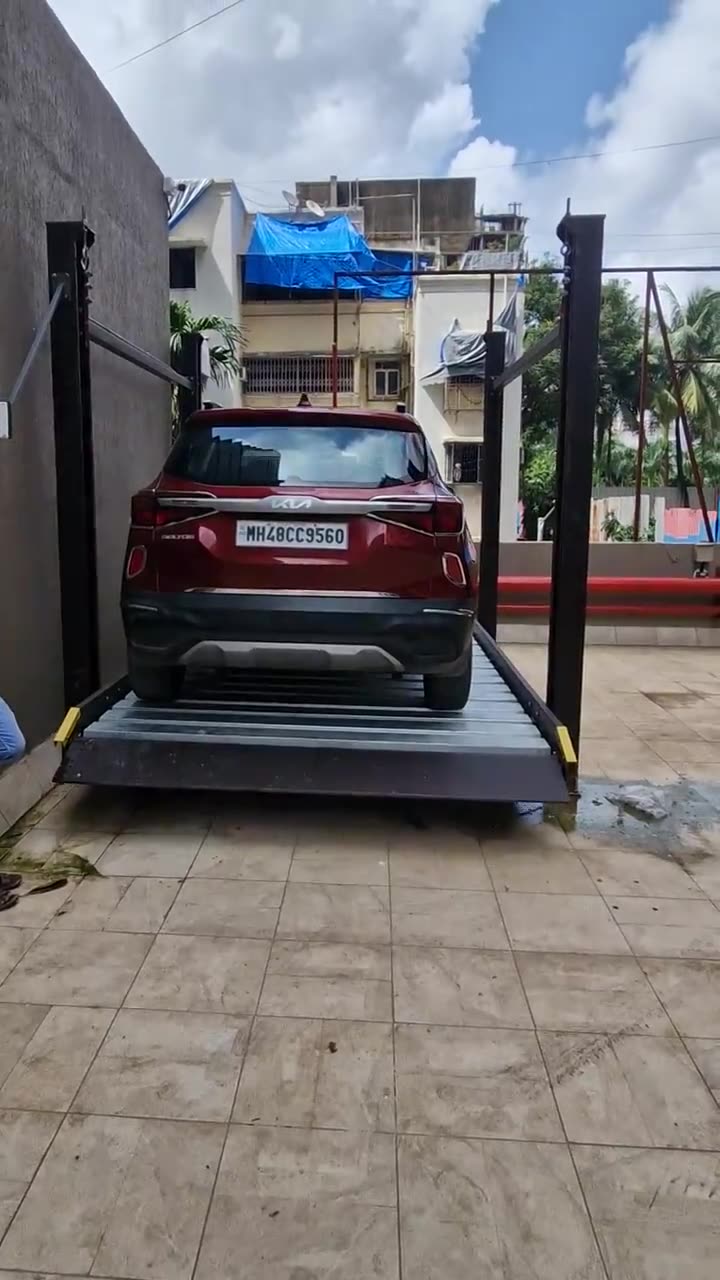

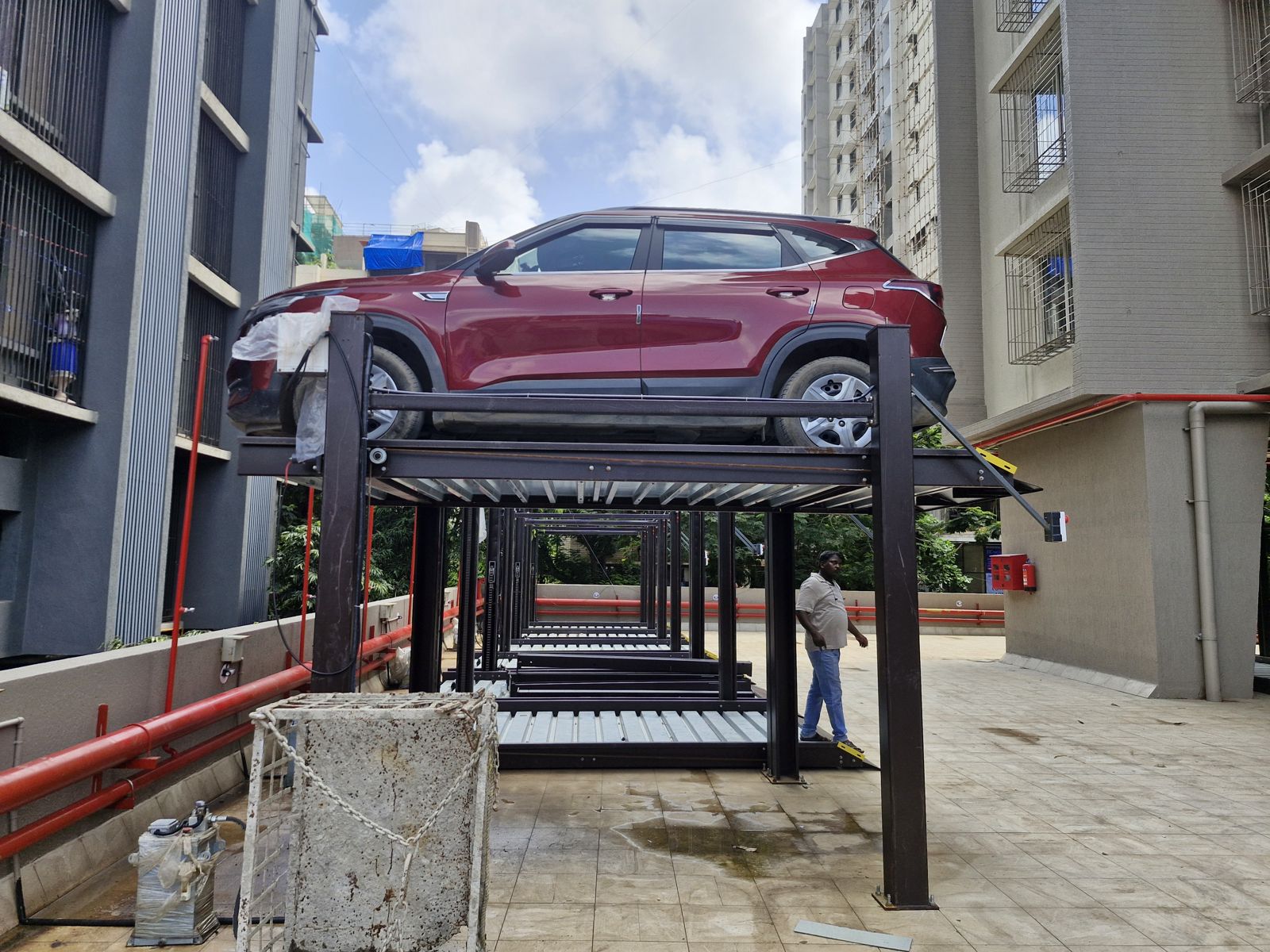

Four Pole Stack parking system installed by Kay96 photos · 4 videos

System 01 / 07

Four Pole Stack

See this system at work in photos and videos from our installations.

Specifications, models and dimensions for this system are provided on enquiry. Share your site details and we will size the system for you.

Enquire

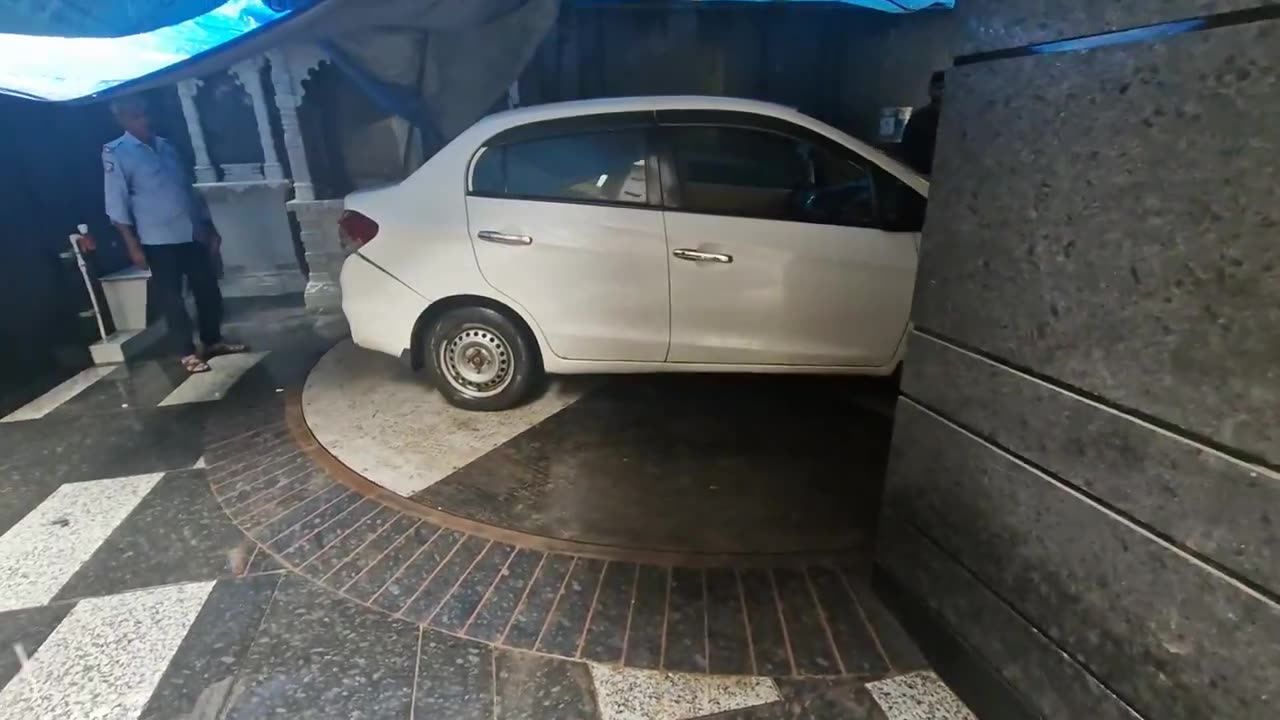

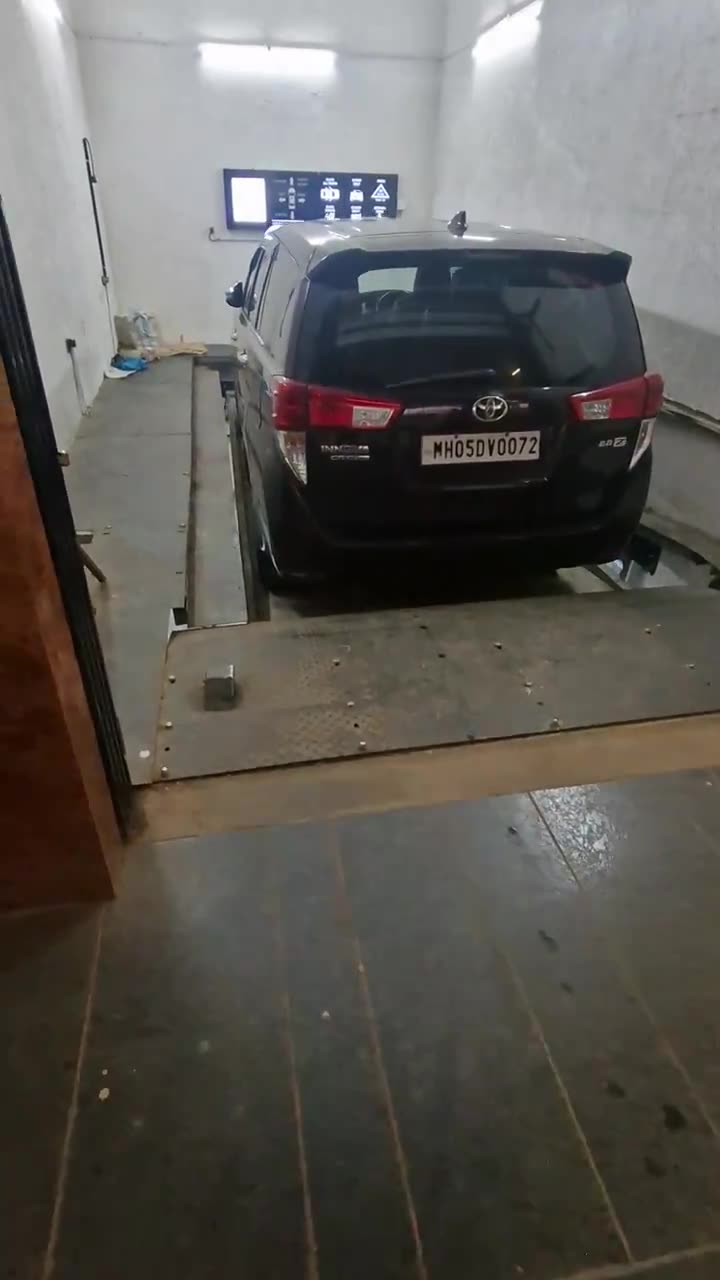

Horizontal (Shuttle Type Back-To-Back) parking system installed by Kay92 videos

System 02 / 07

Horizontal (Shuttle Type Back-To-Back)

See this system at work in photos and videos from our installations.

Specifications, models and dimensions for this system are provided on enquiry. Share your site details and we will size the system for you.

Enquire

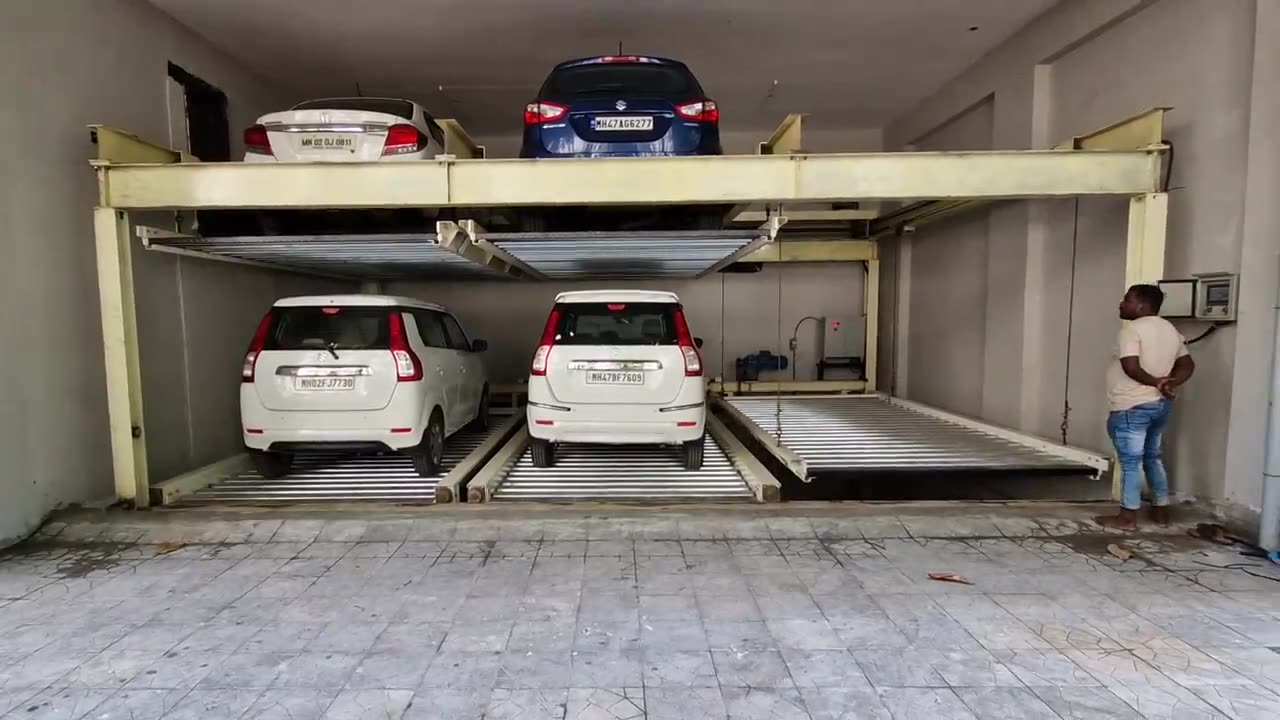

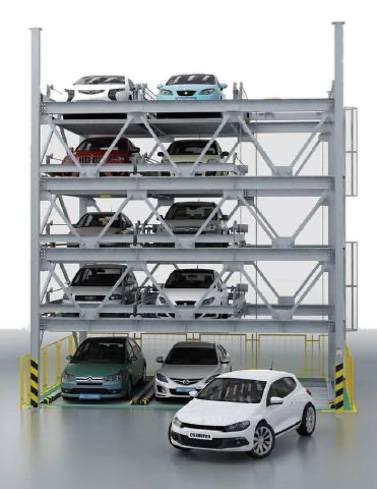

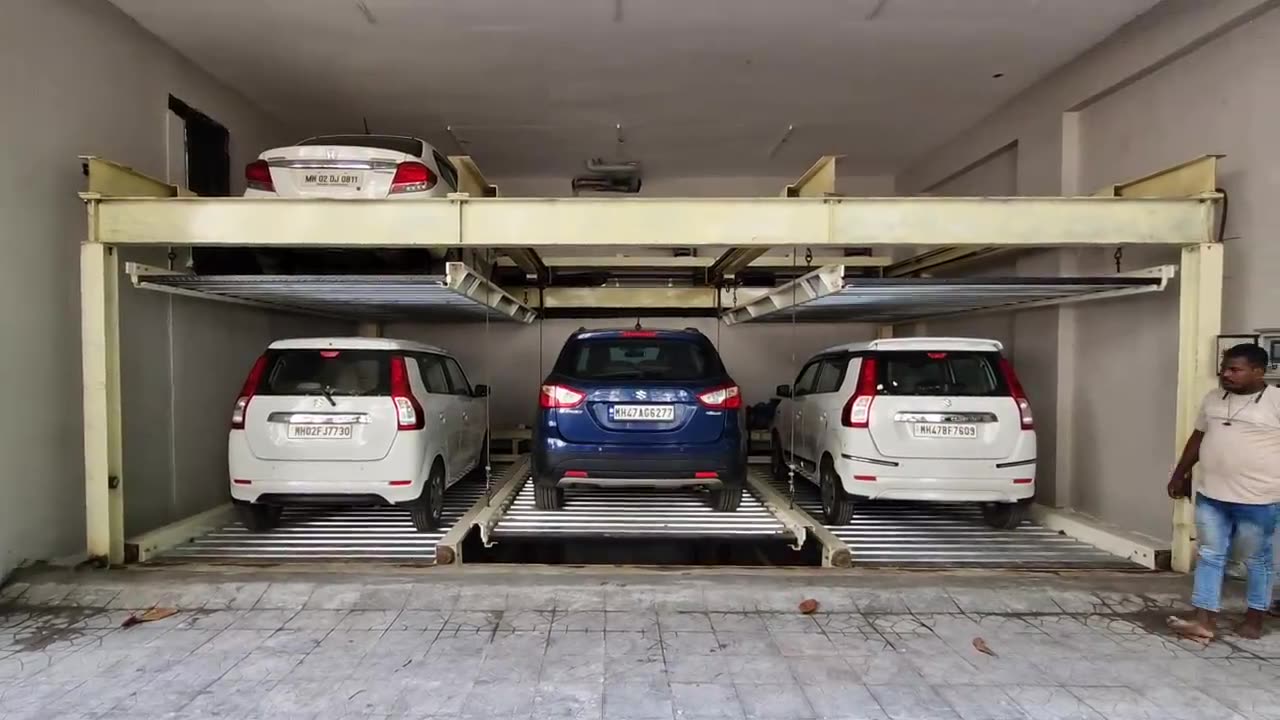

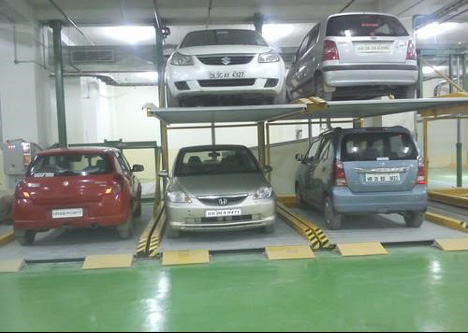

Puzzle parking system installed by Kay92 photos · 2 videos

System 03 / 07

Puzzle

Vertical Horizontal Parking System

Multiple parking cars to the limited parking space, save a great deal of room. Except the top floor, each floor has a spare parking space and front-rear guide rails. Each parking space has a pallet which moves horizontally on the guide rail.

  • Elevating speed 6.3 m/min · horizontal 7 m/min
  • Noise ≤ 60 Db(A)
  • Control way: PLC
Enquire

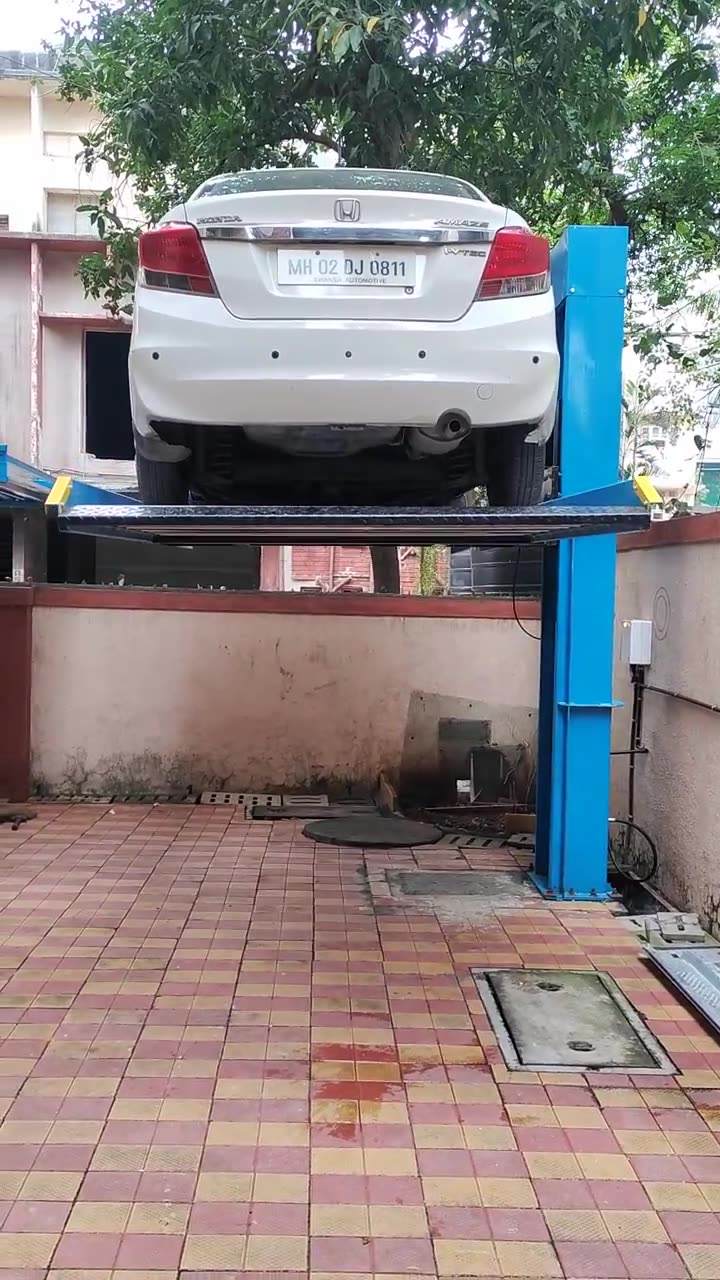

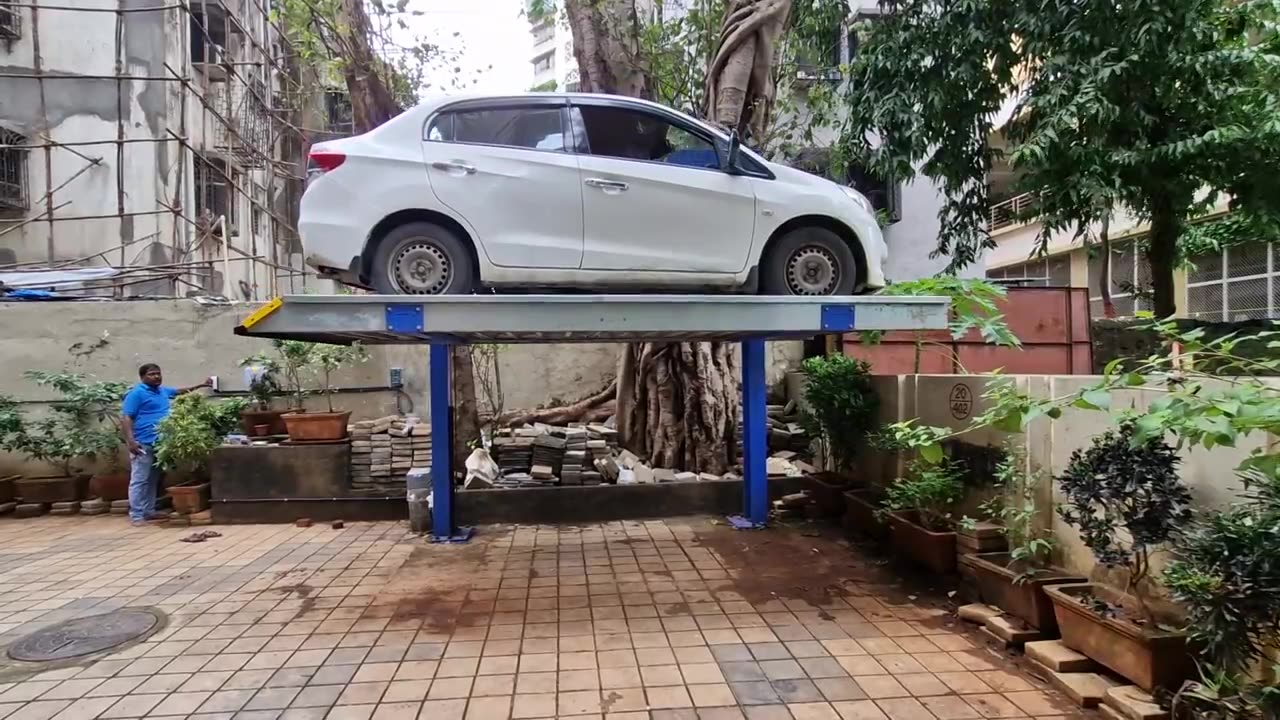

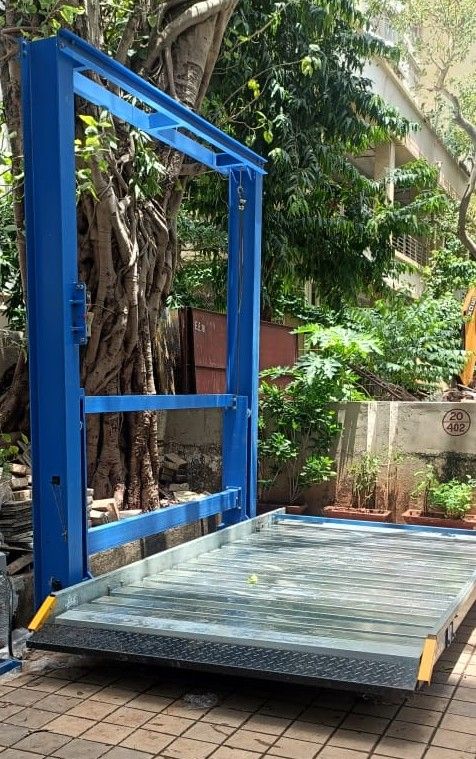

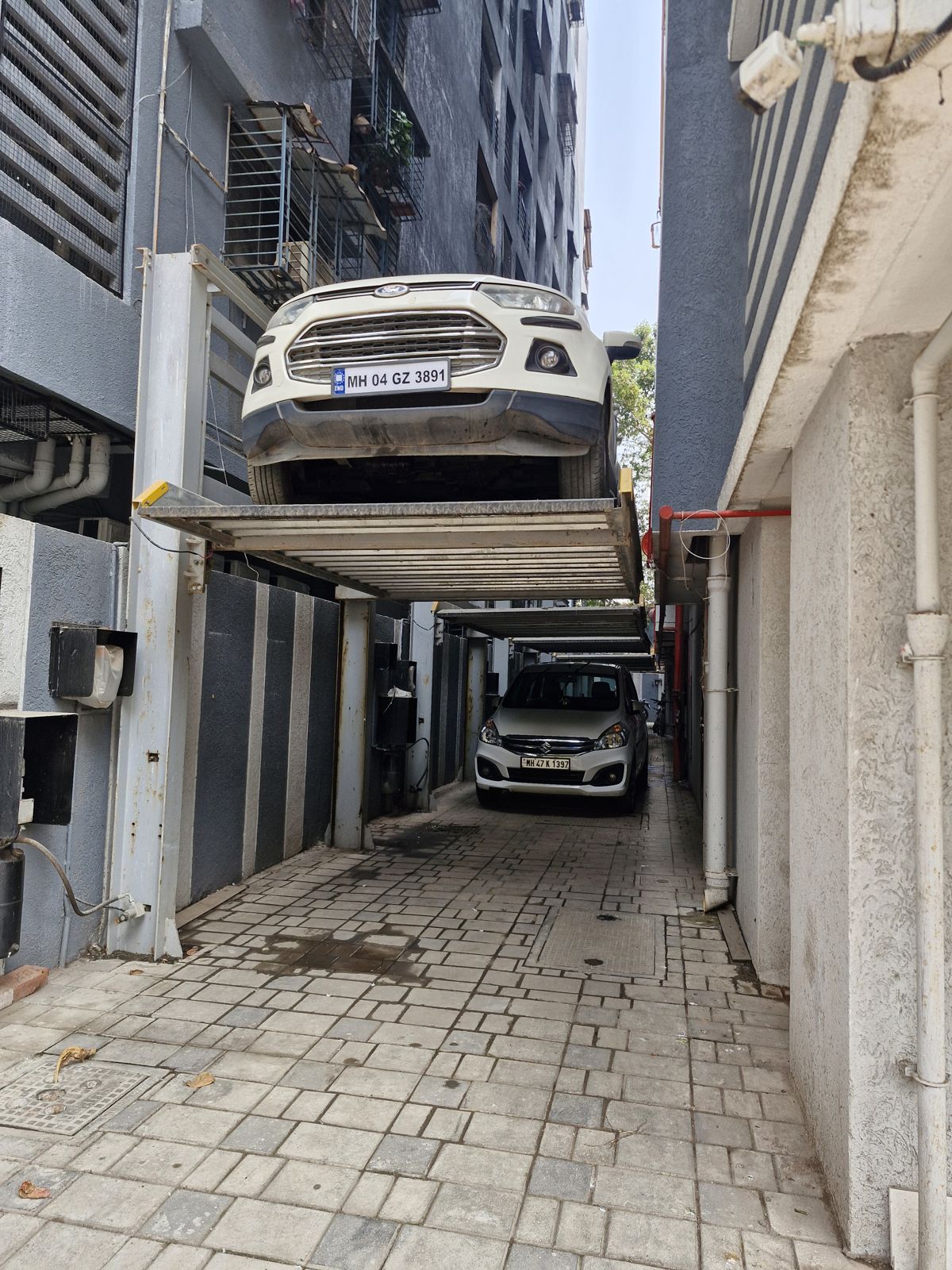

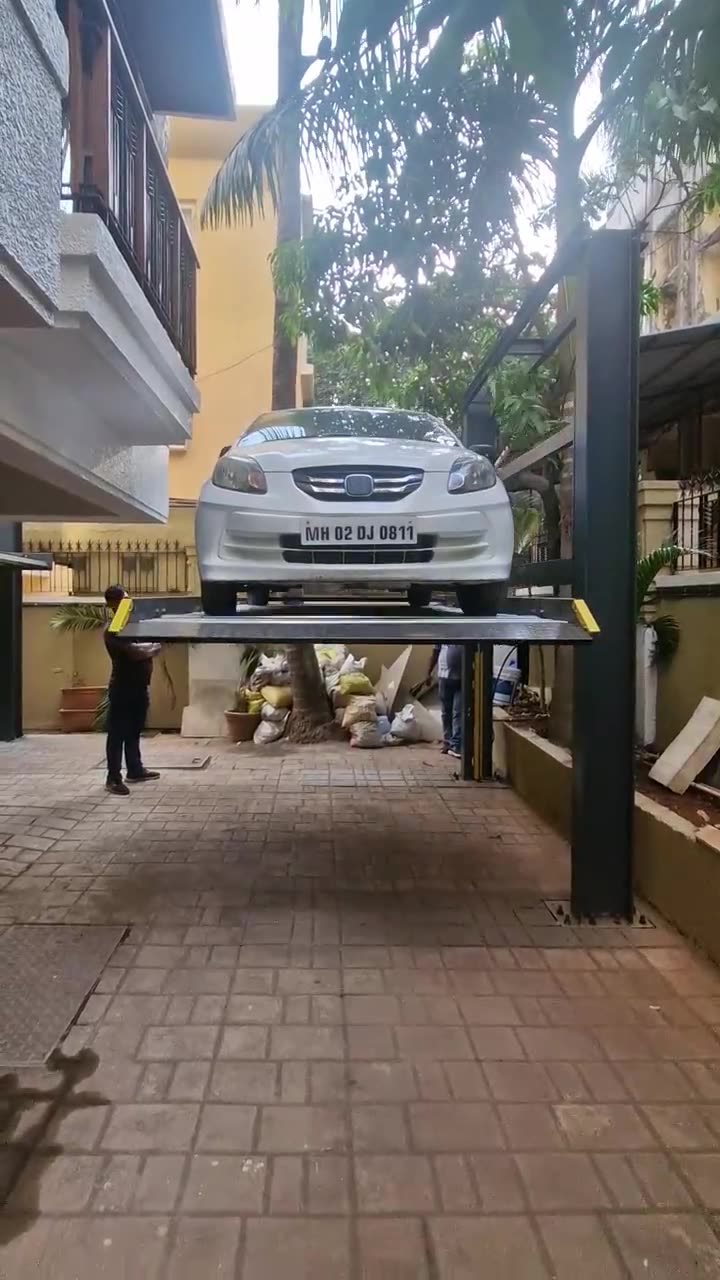

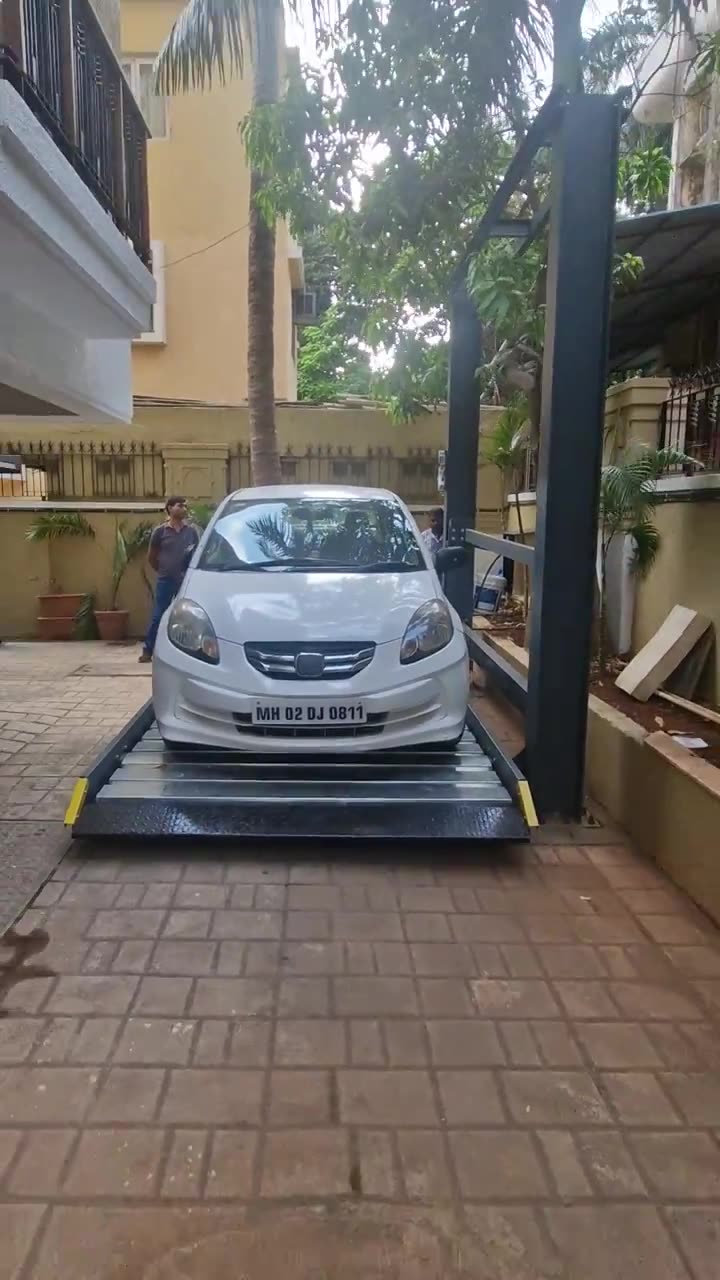

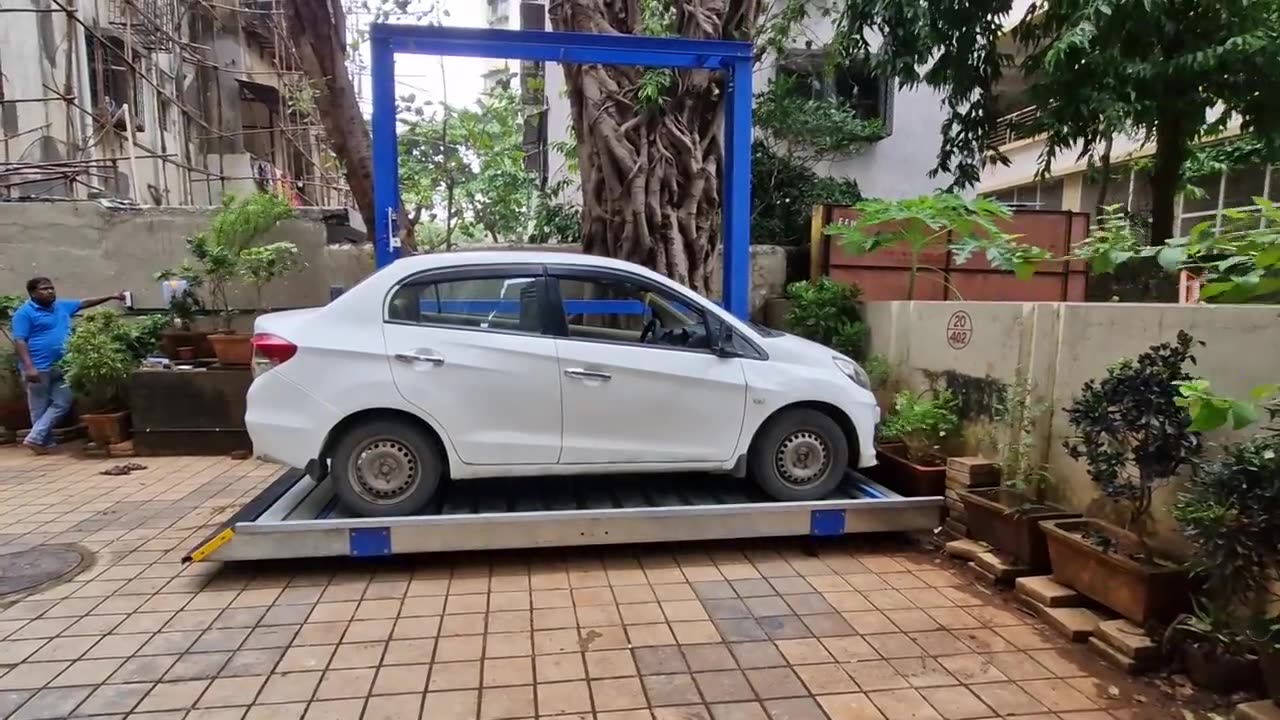

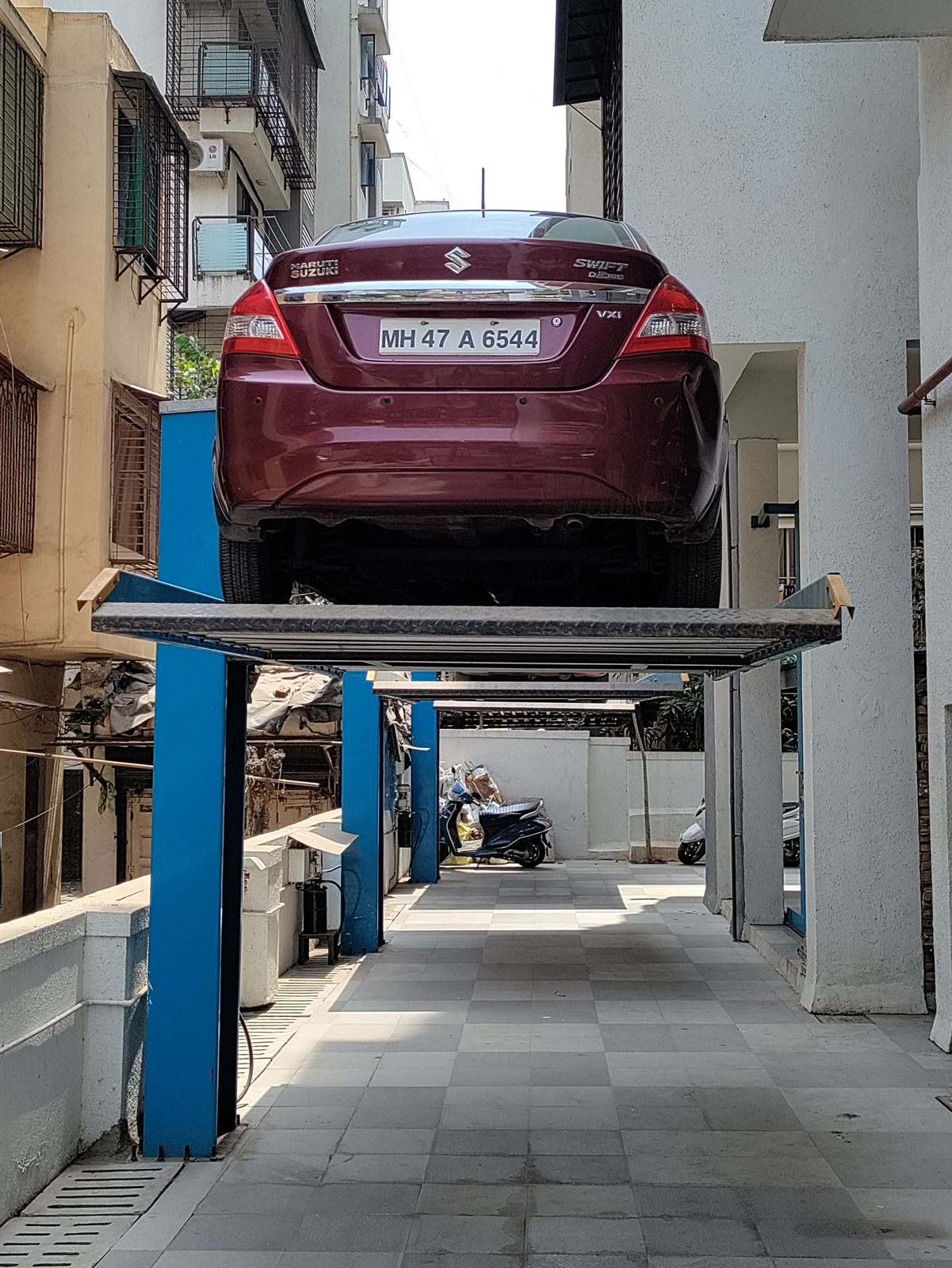

Single/Two Pole Cantilever parking system installed by Kay93 photos · 5 videos

System 04 / 07

Single/Two Pole Cantilever

See this system at work in photos and videos from our installations.

Specifications, models and dimensions for this system are provided on enquiry. Share your site details and we will size the system for you.

Enquire

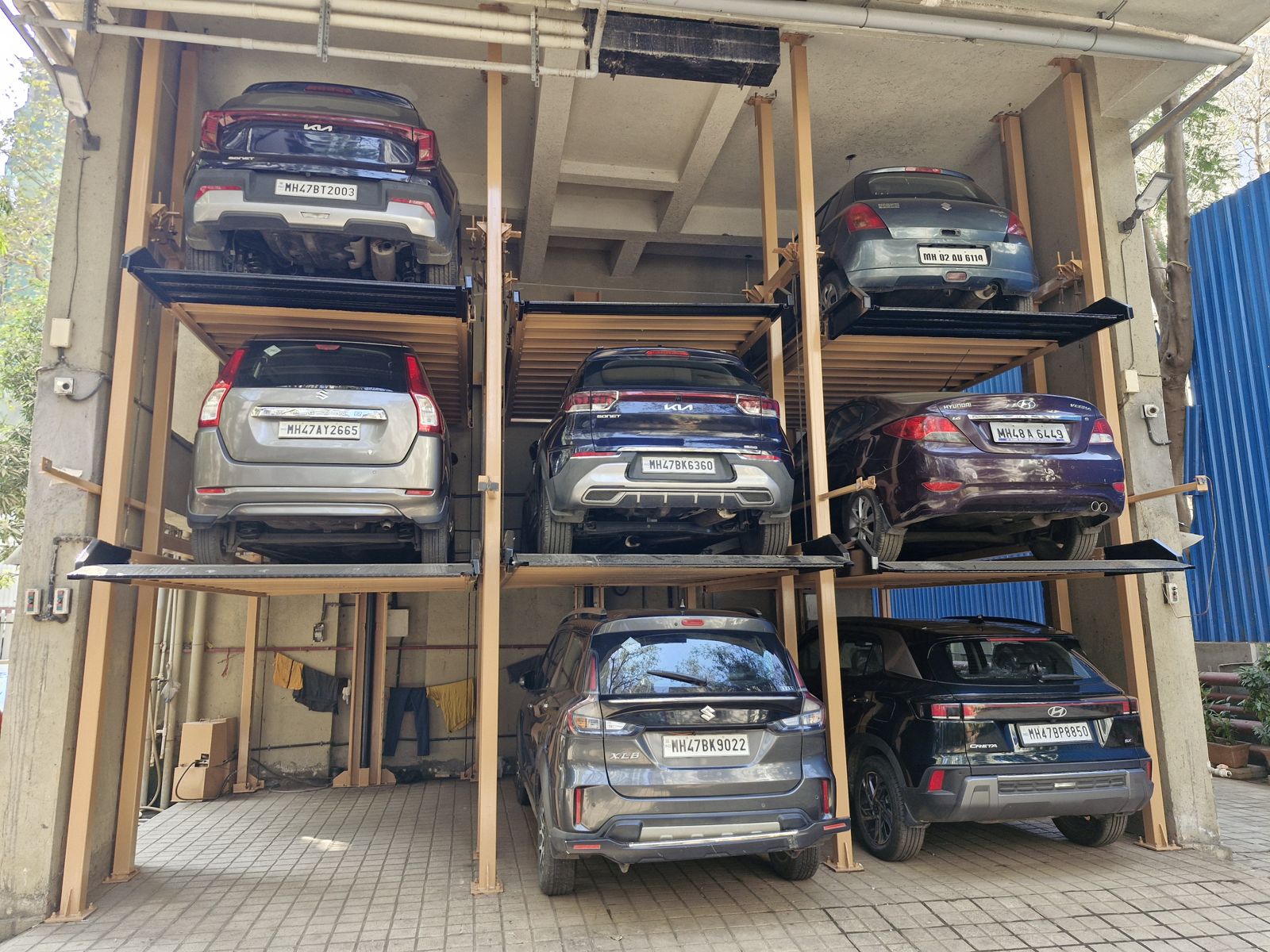

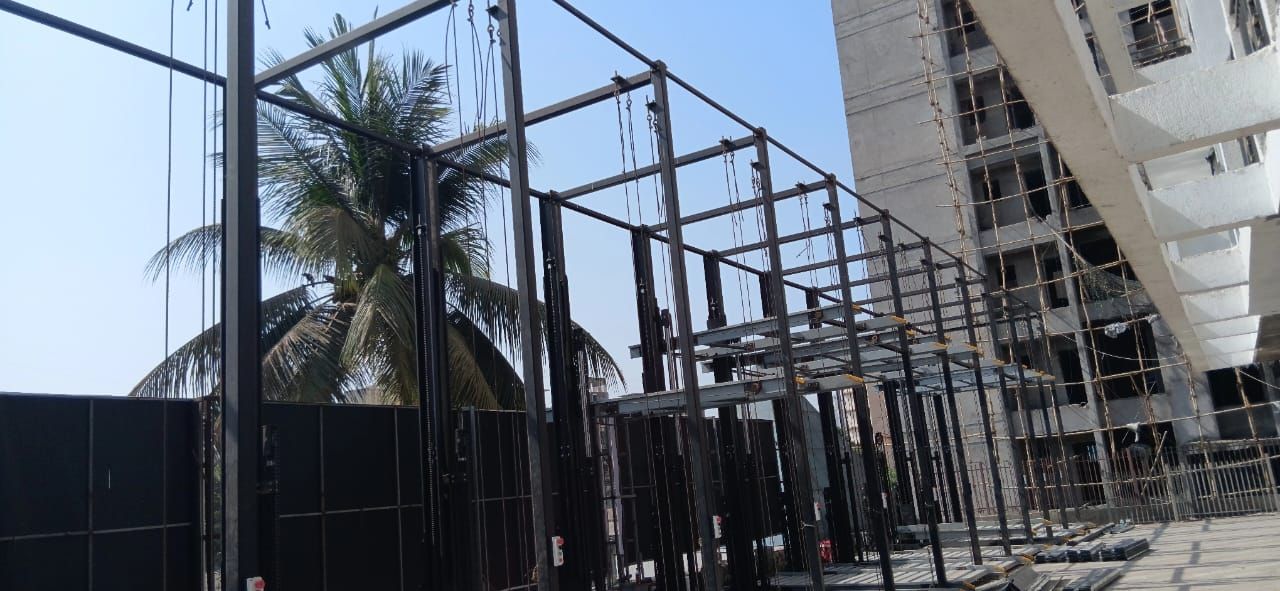

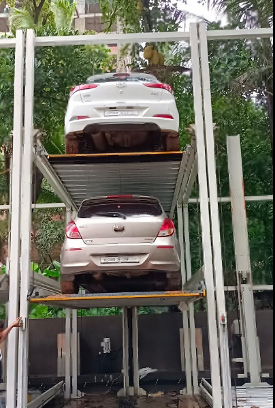

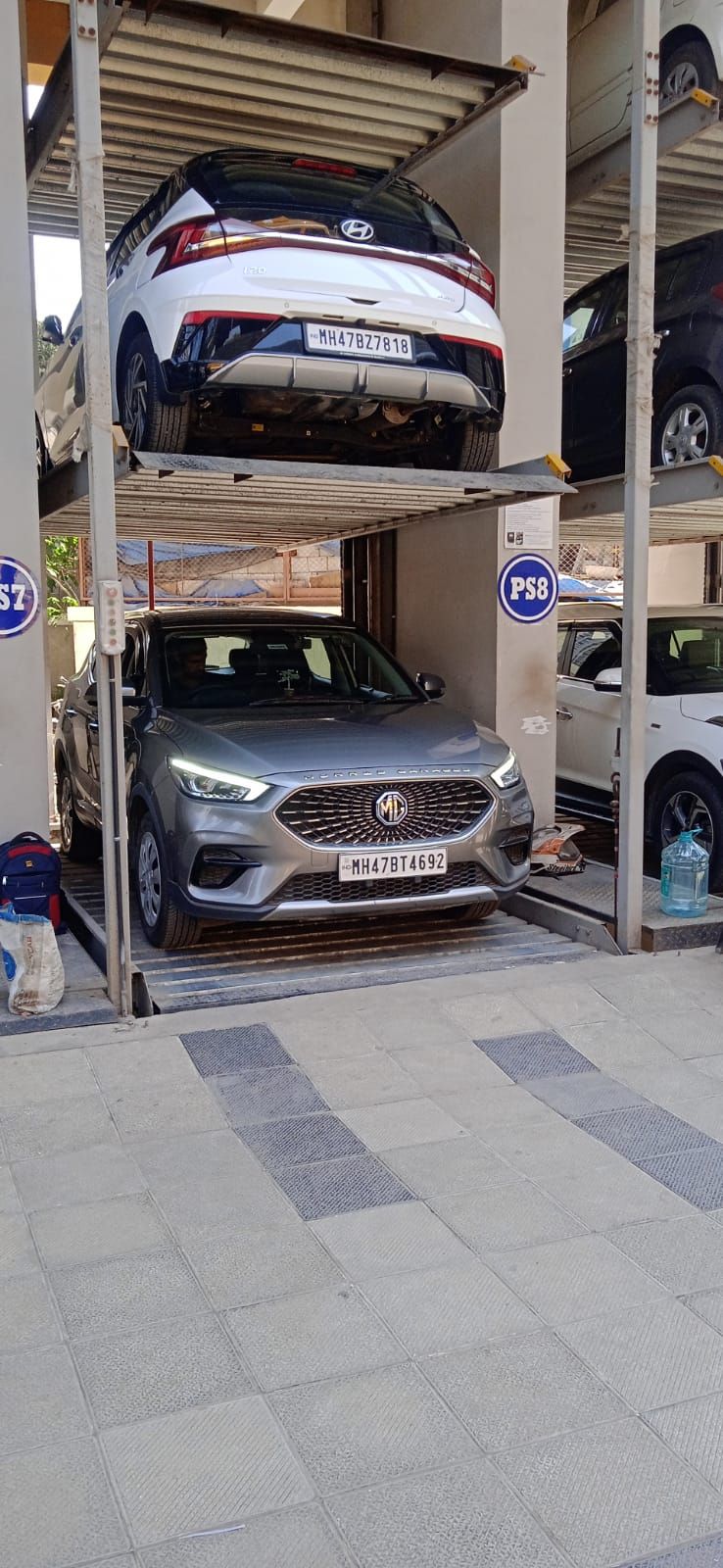

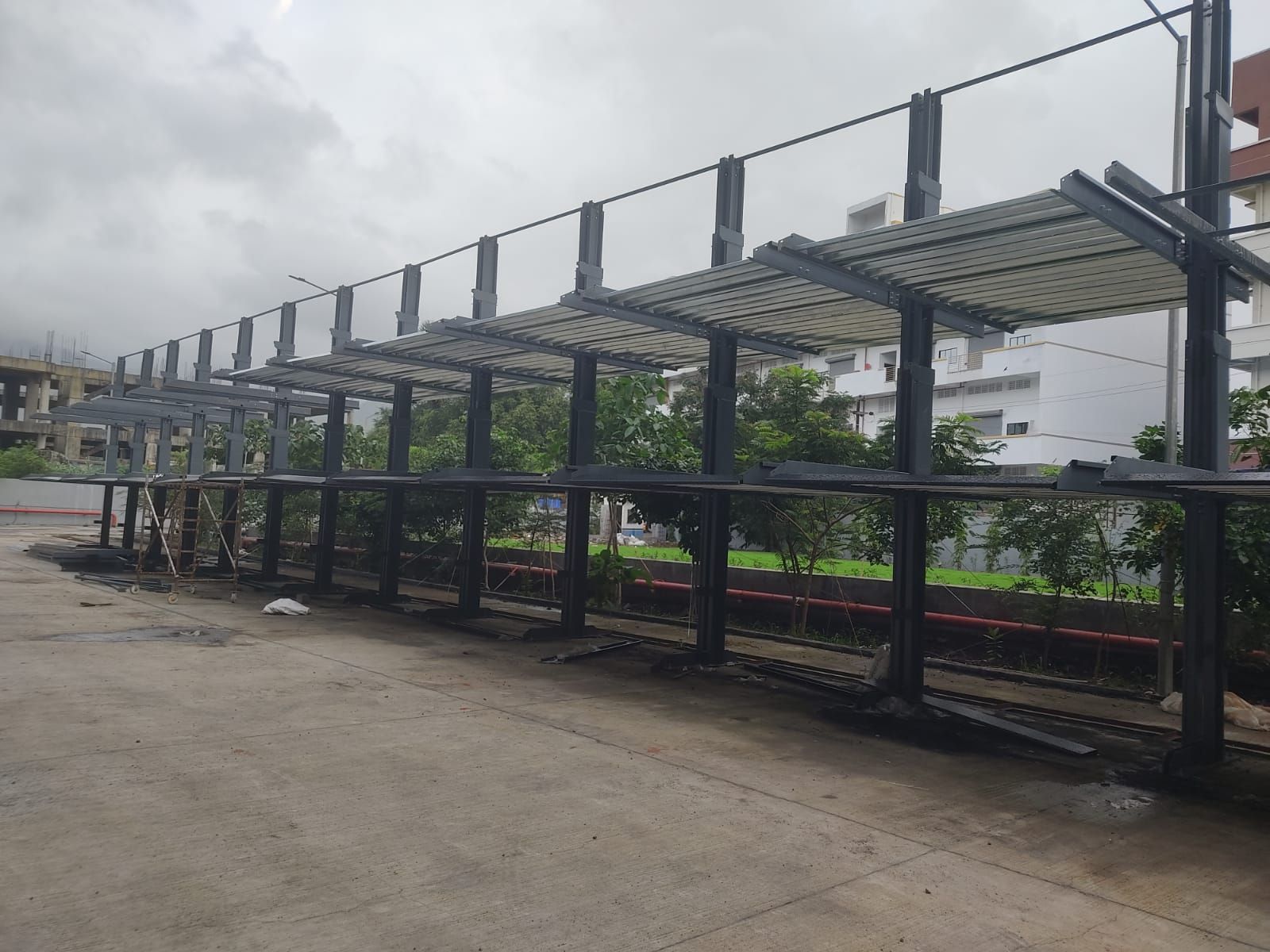

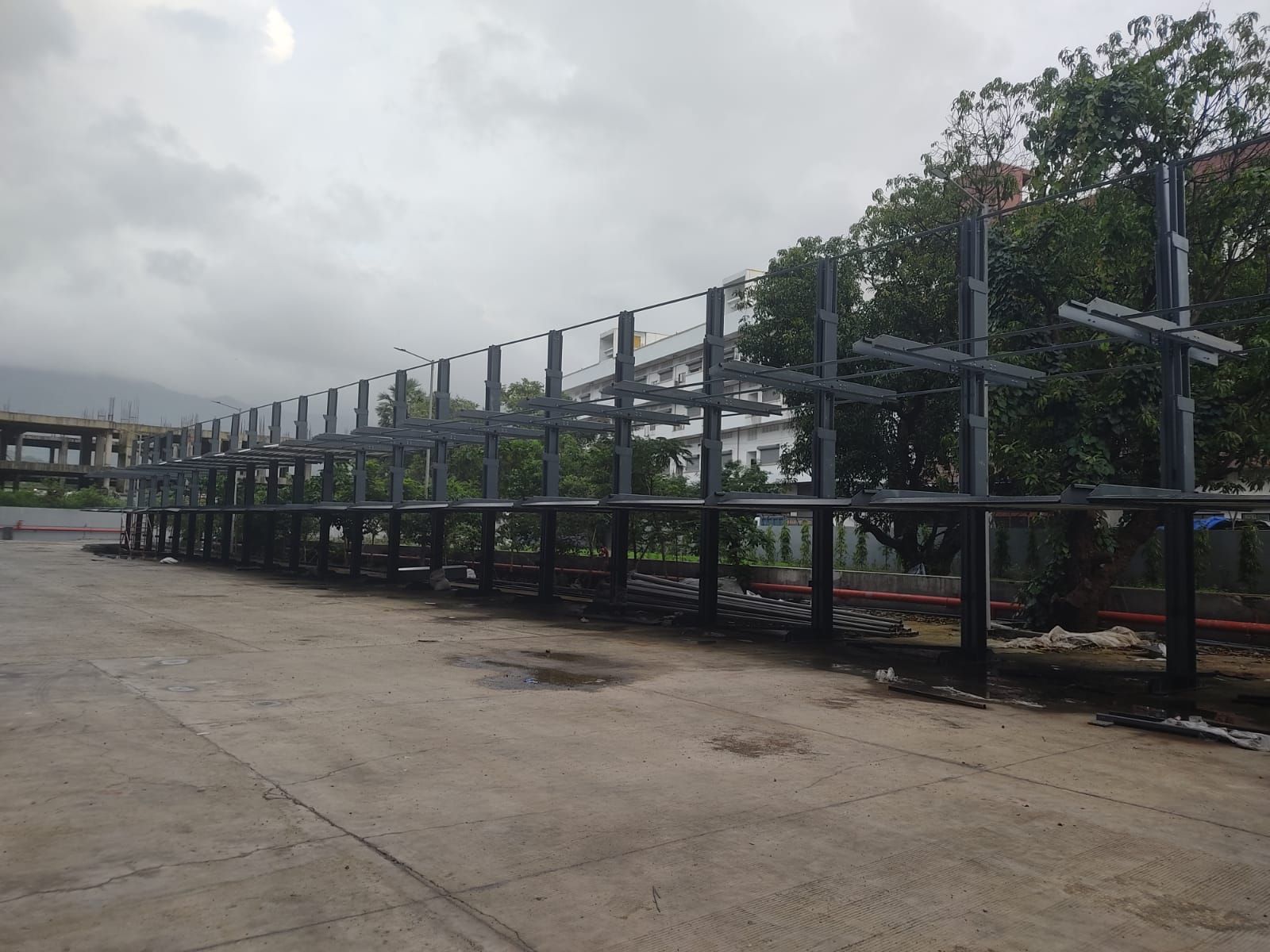

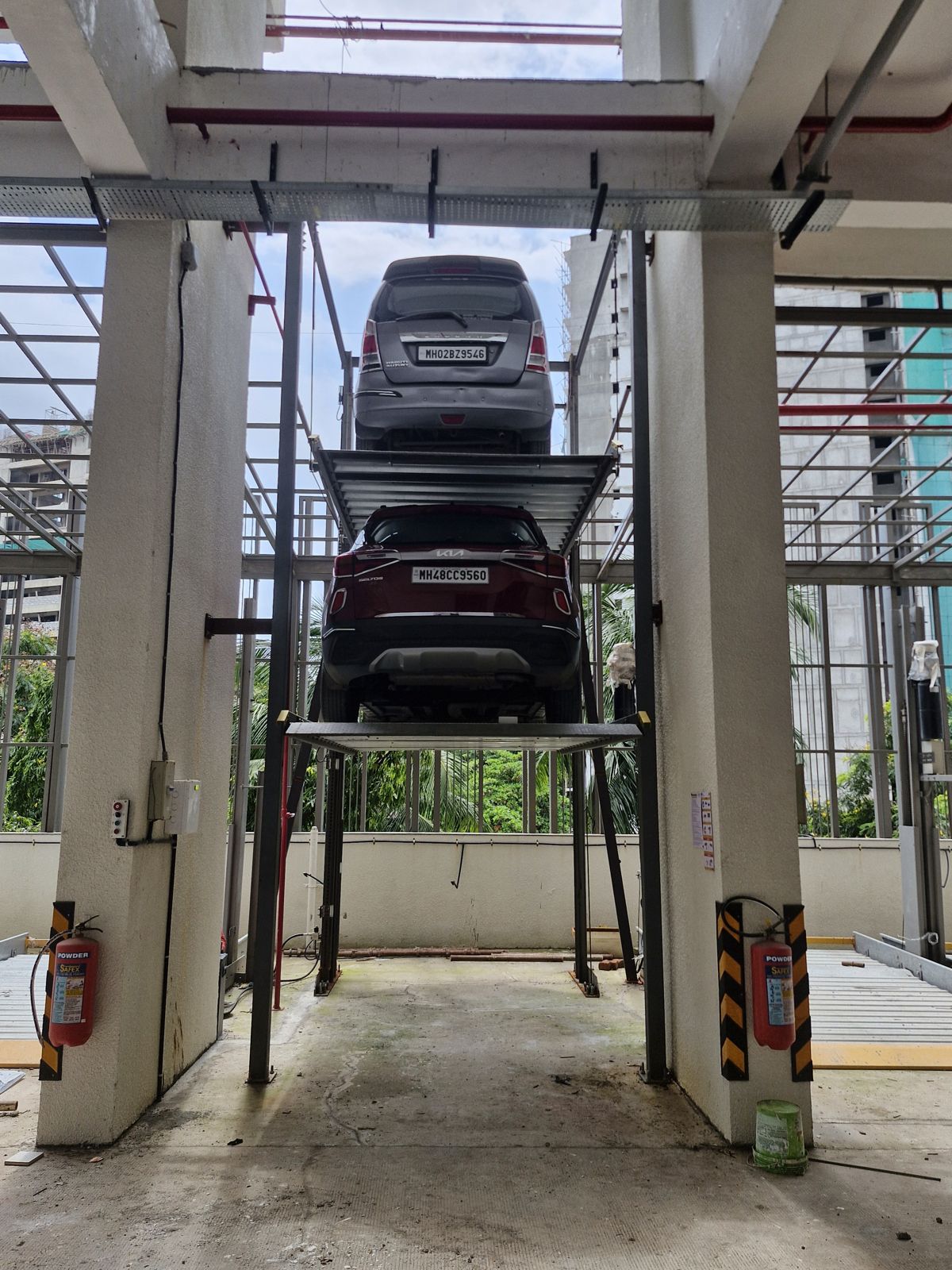

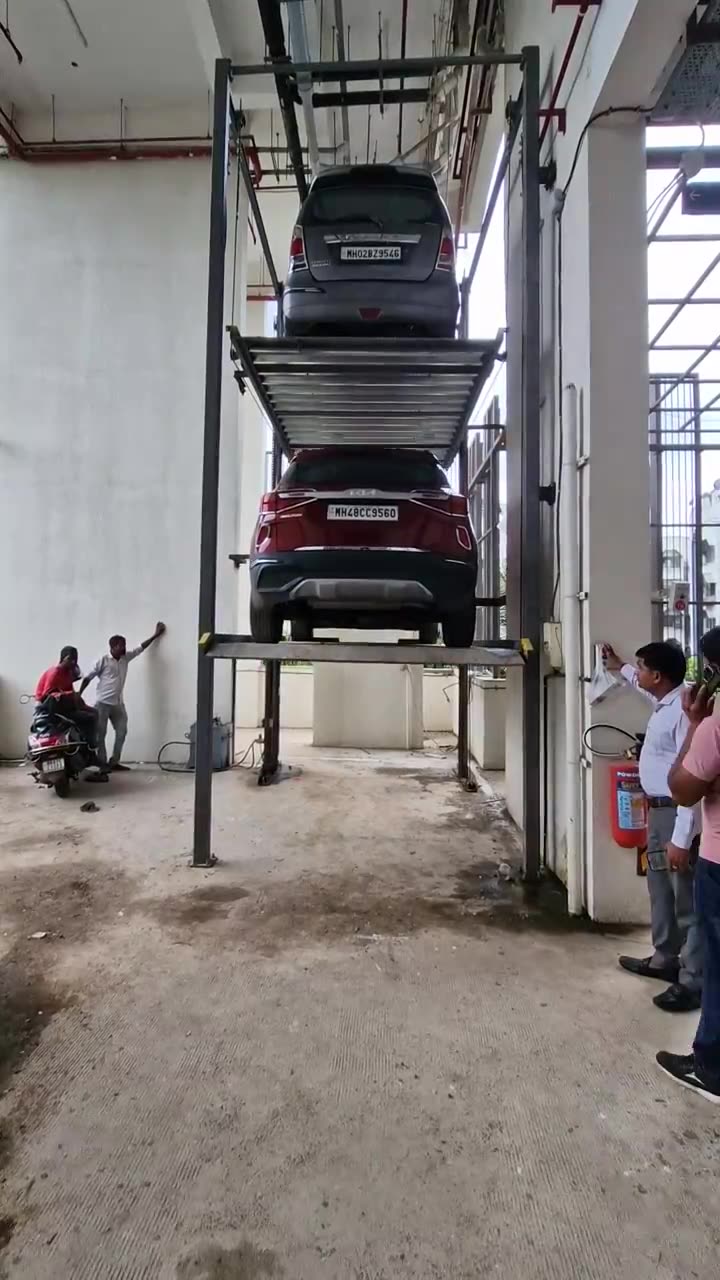

Three Level Stack parking system installed by Kay98 photos · 1 video

System 05 / 07

Three Level Stack

Dependent System

This is Parking System offers parking for 3 cars; one on the ground and two on the two upper levels. The car on the ground level will need to be removed before lowering the first level platform; similarly the ground and first level cars will need to be removed before lowering the second level platform.

  • Two platforms per system
  • Four post structure — indoor or outdoor
  • Load capacity 2000 Kg per pallet
Enquire

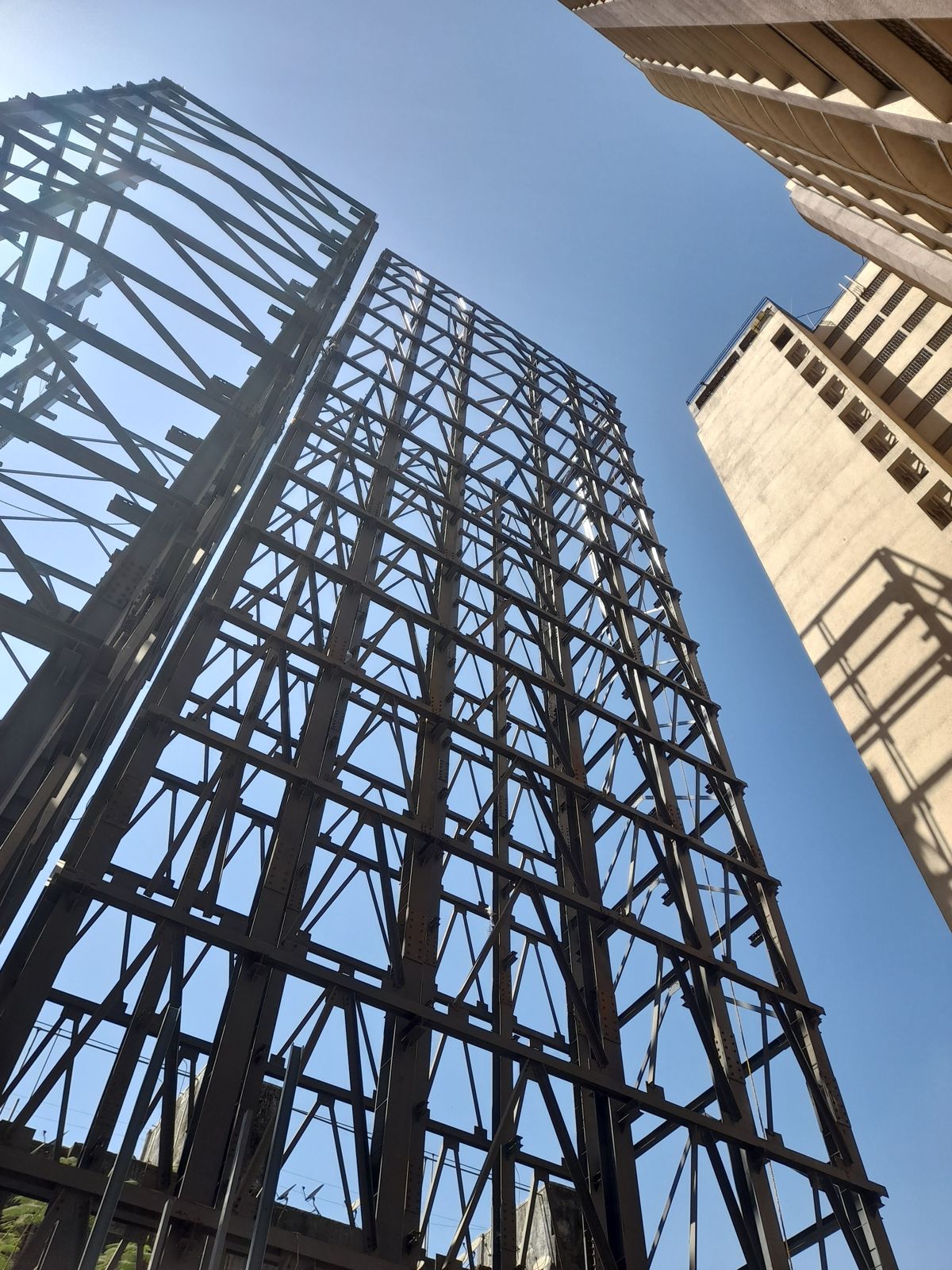

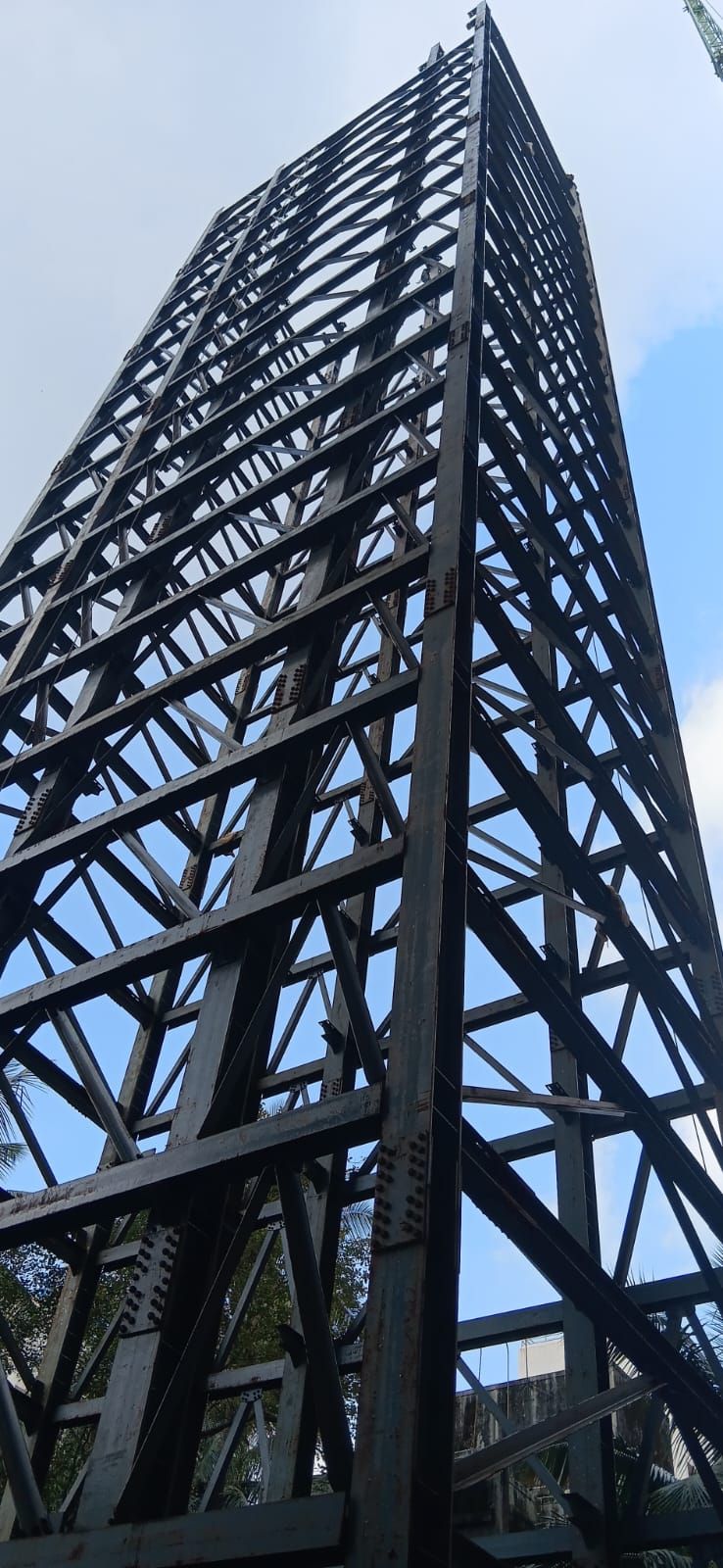

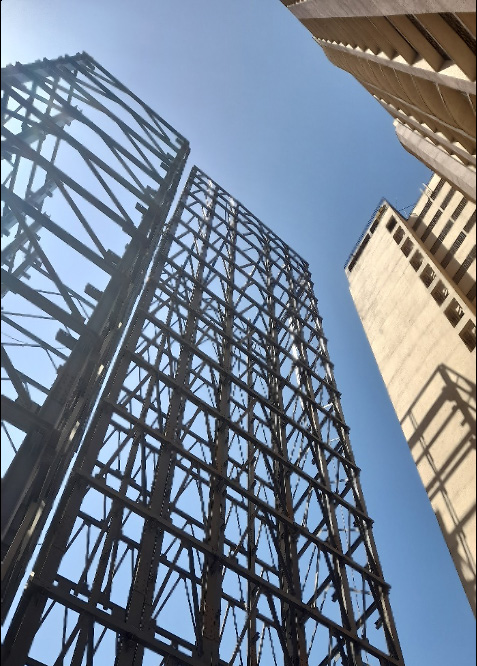

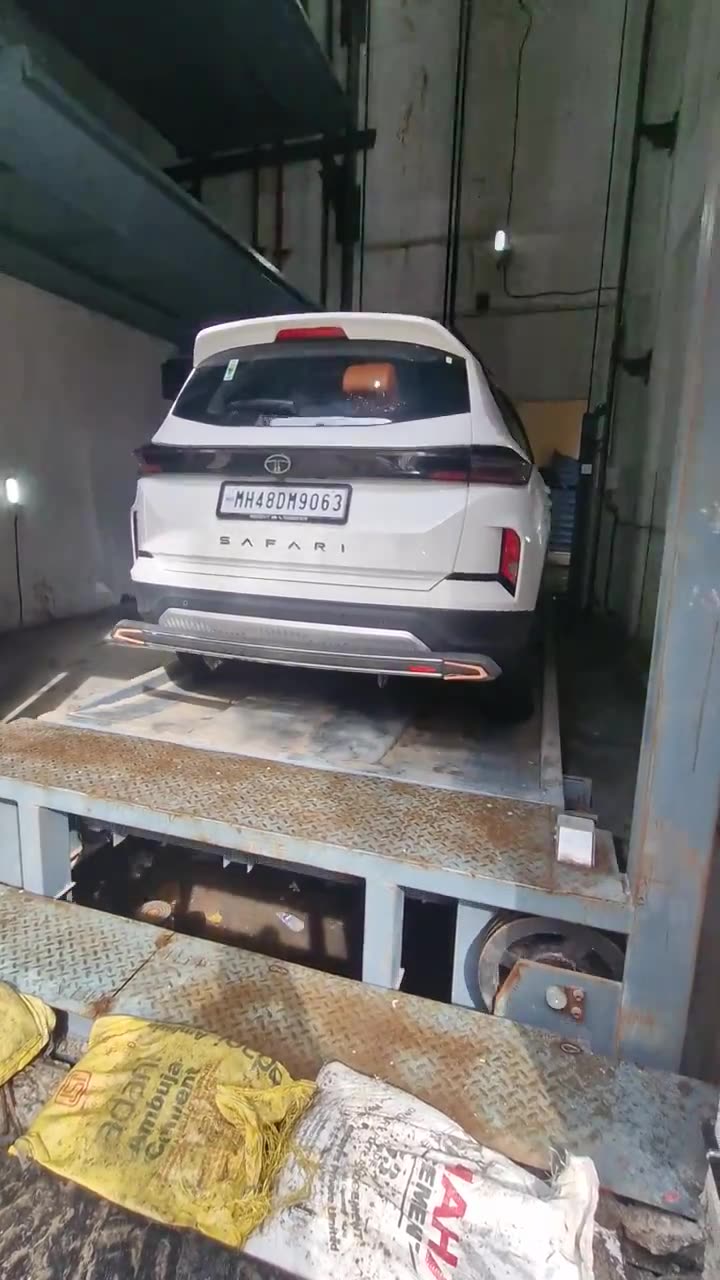

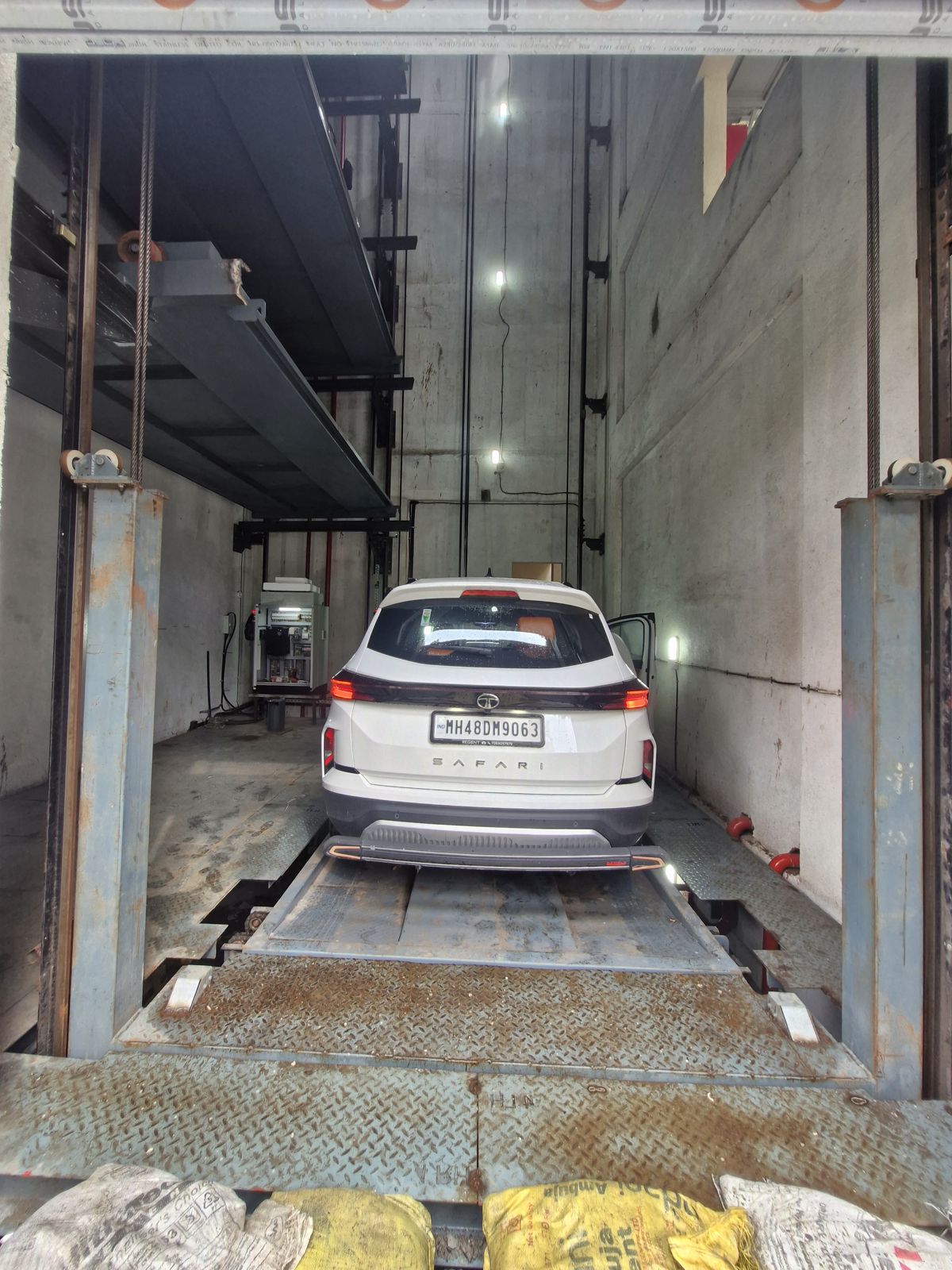

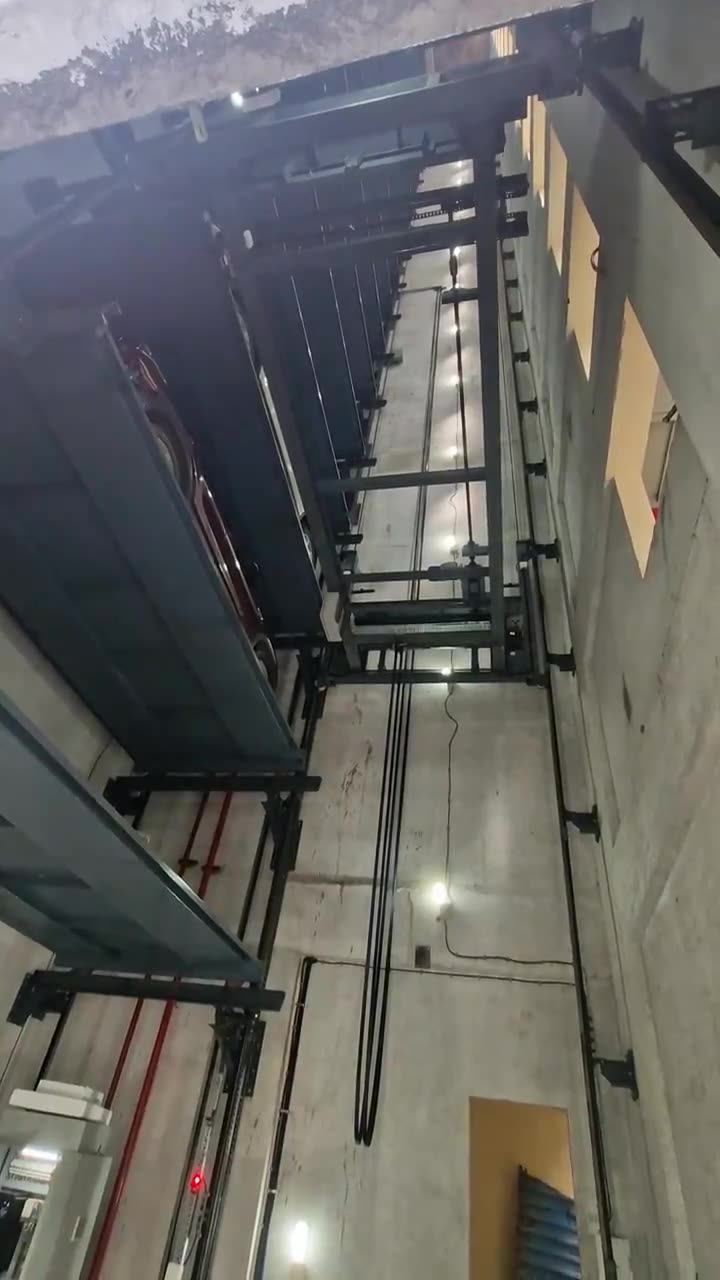

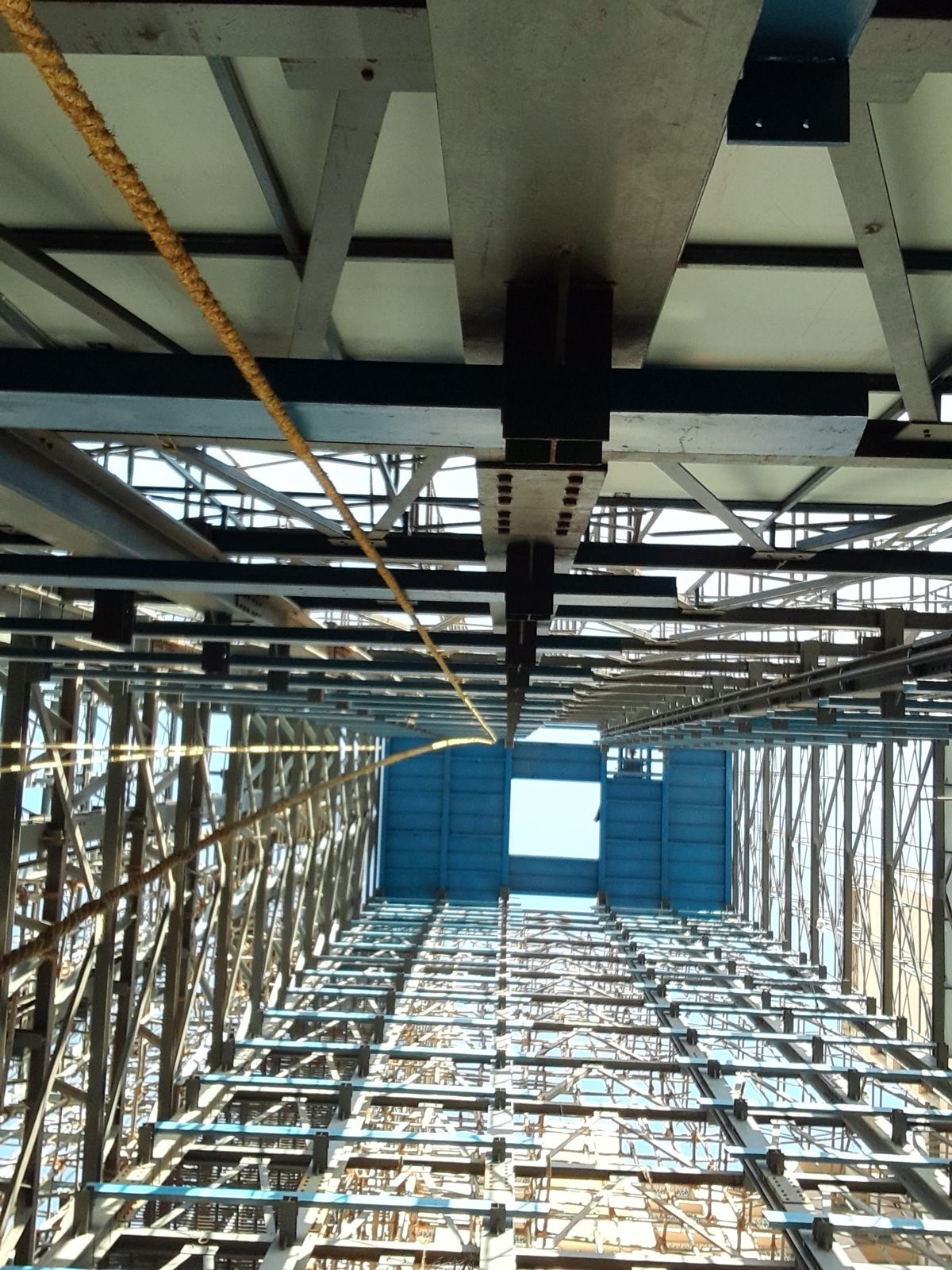

Tower parking system installed by Kay96 photos · 2 videos

System 06 / 07

Tower

Tower Parking

A lifting channel is designed in the middle of the equipment and the parking spaces are divided in two sides. Each parking space has a car carrying pallet which can make a horizontal moving. The car can go out or in when the case drops to the same level with the ground.

  • Less land area coverage, high usage rate of space
  • Anti-fall, anti-crashing, anti-overloading devices
  • Turn keys, touch screen, RFID card (optional)
Enquire

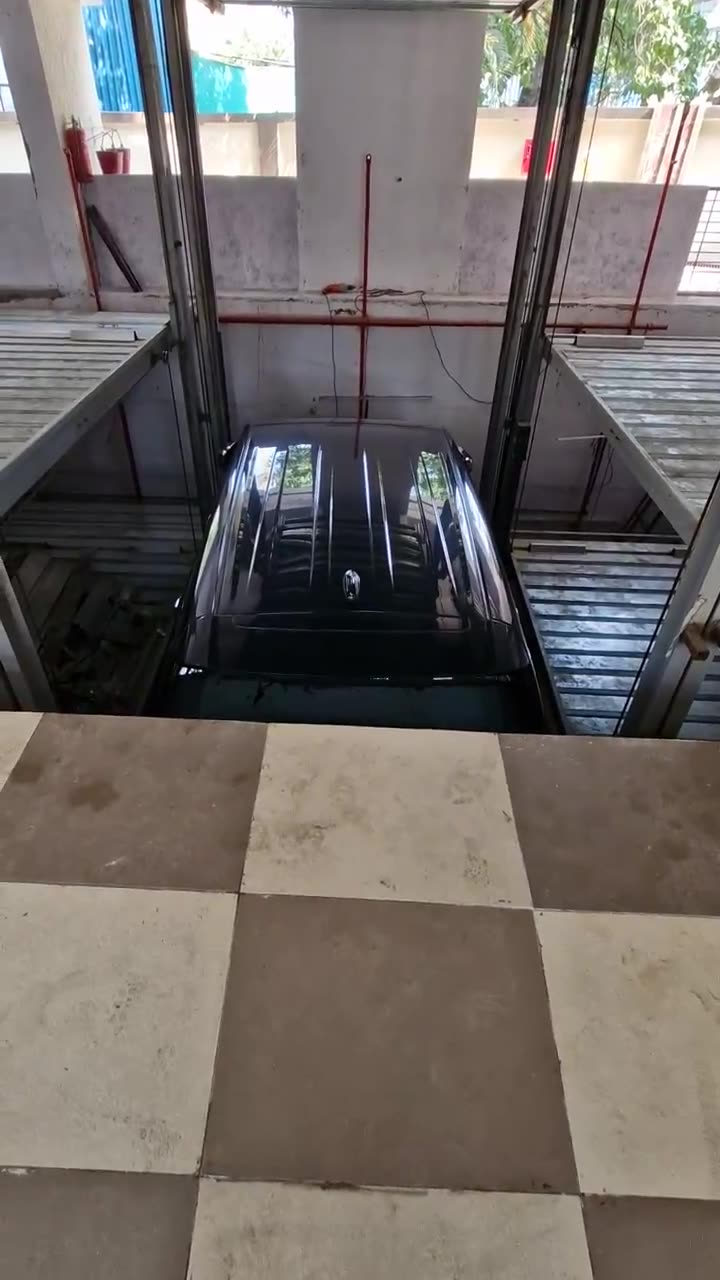

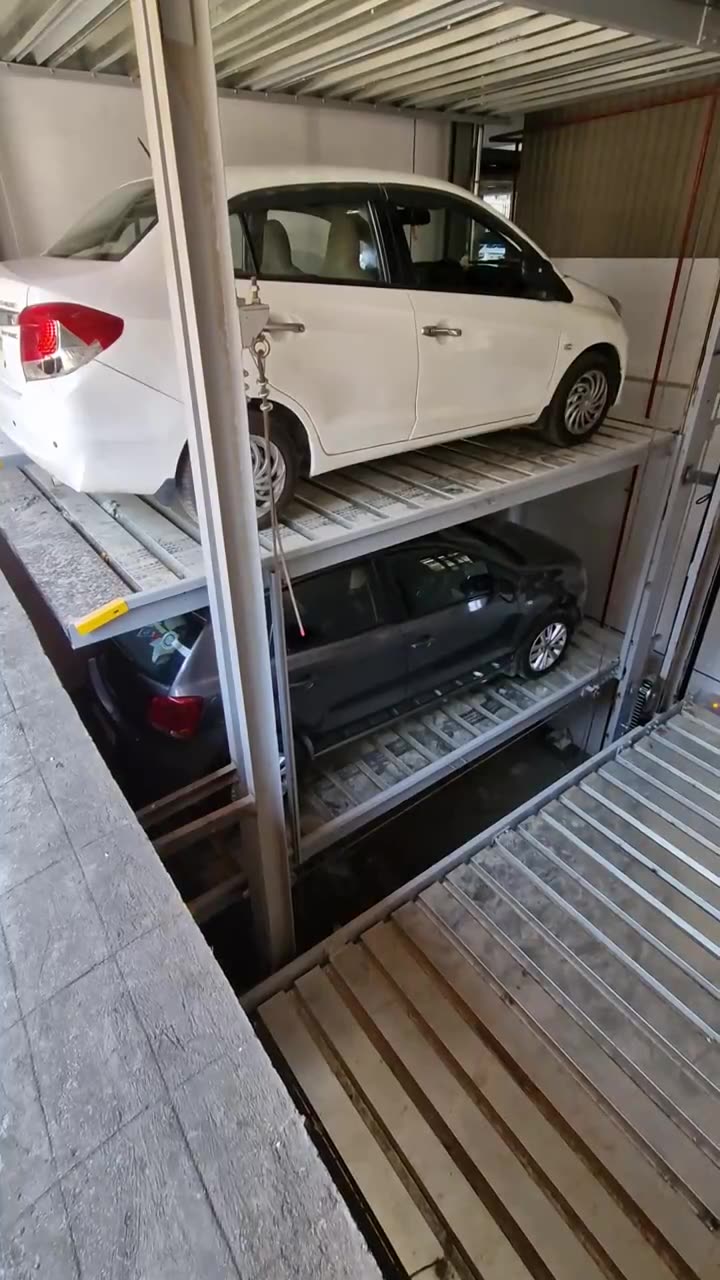

Two/Three Level Pit Stack parking system installed by Kay92 photos · 2 videos

System 07 / 07

Two/Three Level Pit Stack

Dependent System

The three level pit stack offers parking for 3 cars; one on the ground, one in the pit and one on the first level. The car on the ground level will need to be removed before lowering the first level platform or lifting up of the platform that goes into the pit.

  • Three platforms per system (three level)
  • Dual height limit switches on each machine
  • Pit depth 1900-2100 mm (three level)
Enquire

Why Kay9

Built heavy, wired safe,
sized to your site.

The same engineering runs through every system we fabricate.

High-Performance Mechanical / Hydraulic Systems

Fully enclosed, compact hydraulic or mechanical power packs with premium imported valves delivering smooth operation and rapid 35–45 second lift cycles.

Safe 24V DC Low-Voltage Control

Operates on a 24V DC control circuit to completely eliminate high-voltage shock hazards during routine use.

Multi-Tier Locking Systems With Safety Valve

Equipped with redundant safety locks, electromagnetic fail-safes at every position, and precision limit switches and safety valve to safeguard vehicles against operational mishaps.

Secure Key-Operated Controls

Access-controlled operator switch box with master keys and push-button controls to strictly prevent unauthorized operation.

Certified Structural Fabrication

Heavy-duty steel construction built with tested, certified high-grade materials and double-layer protective coatings for extended service life.

Custom Engineering for Complex Spaces

Tailor-made dimensions designed to fit irregular layouts, tight angles, pit constraints, and architectural challenges.

Project Rescue & Retrofitting Expertise

We specialize in rectifying faulty, incomplete, or poorly executed third-party installations, turning stalled or non-functional systems into safe, operational parking units.

On-Call Support & Rapid 24-Hour Maintenance

Dedicated on-call technical assistance for immediate troubleshooting, with guaranteed on-site resolution or service within 24 hours to keep your facility running seamlessly (*T&C apply).

Inclusive Maintenance & AMC Support

Comprehensive Annual Maintenance Contract (AMC) included in initial quotation to ensure zero downtime and peak performance (*T&C apply).

Contact

Show us the space.
We'll maximise the capacity.

Book a discovery call and attach your CAD drawings or site layouts. Whether you have standard dimensions or an unconventional plot, we analyse your clear heights and parking targets to engineer a custom, space-optimised parking system.

  • Bhavin Shah+91 98679 32460
  • Office

    503 - Hitendra Tower, R M Bhattad Road, Near HDFC Bank, Chikuwadi, Borivali West, Mumbai 400092

  • Workshop

    Umar Compound Industrial, Plot No-PL 06/372, Sopara Phata, Nalasopara East 401209

Download the brochure (PDF)

Send an enquiry

Only your name and phone number are required.

Drawings / site plans (optional)

Drop your CAD files here or browse

DWG, DXF, PDF, JPG, PNG or ZIP · up to 10 MB in total

    System 01

    Four Pole Stack

    Specifications, models and dimensions for this system are provided on enquiry. Share your site details and we will size the system for you.

    Enquire about this system

    System 02

    Horizontal (Shuttle Type Back-To-Back)

    Specifications, models and dimensions for this system are provided on enquiry. Share your site details and we will size the system for you.

    Enquire about this system

    System 03

    Puzzle

    Vertical Horizontal Parking System

    How it works

    Multiple parking cars to the limited parking space, save a great deal of room. Except the top floor, each floor has a spare parking space and front-rear guide rails. Each parking space has a pallet which moves horizontally on the guide rail. The pallets on the top floor make up-down movements while the ones on the ground floor make left-right horizontal movement, the other ones can move either left to right or up and Down through continuous space shift, parking and fetching a car can be realized.

    Main technical specification

    1. Elevating speed : 6.3 m/min.
    2. Horizontal-moving speed : 7 m/min.
    3. Noise : ≤60 Db(A).
    4. Max. collection time; 90s.
    5. Hoist or lower the drive way : roller chain, steel wire rope (optional).
    6. Control way : PLC.
    7. Operational type: ten keys, touch screen, IC card (optional).

    Models

    ModelsLWH1H2H3H
    K620026002360168016009000
    T640027002010168016008650
    D620026002010168016008650
    Z600025002010168016008650
    X550024002010168016008650

    All dimensions in mm.

    Enquire about this system

    System 04

    Single/Two Pole Cantilever

    Specifications, models and dimensions for this system are provided on enquiry. Share your site details and we will size the system for you.

    Enquire about this system

    System 05

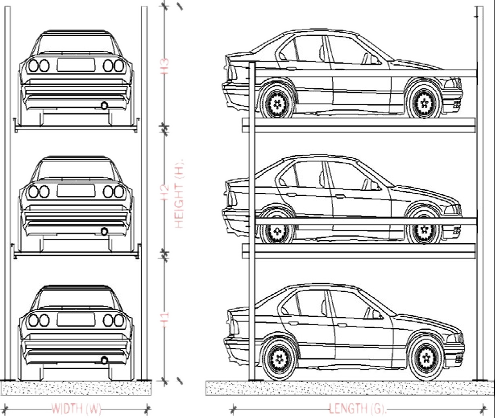

    Three Level Stack

    Dependent System

    Benefits

    1. Two platforms per system.
    2. Four post structure system can be installed in door and out door.
    3. Hot dipped galvanized floor pallets to reduce dead weight and increase durability.
    4. Electromagnetic locking mechanism from start to end at each position.
    5. Remote switch box with keys/push button for easy operation.
    6. Dual height limit switches on each machine (extremely safe & reliable).
    7. Can be customized to suit a client's particular application.

    General specification

    1. Fully hydraulic based system.
    2. Load capacity 2000 Kg. of each pallet.
    3. Standard dimension for the unit is L 4500 × W 2500 × H 6200.
    4. Very less power consumption (2.2 kw./3 HP).
    5. Lifting time 35-45 sec. each pallet.
    6. Key operated to prevent unauthorized use.
    7. Totally enclosed Compact Power pack system.
    8. Imported Quality hydraulic valve to operate the system.
    9. 24v DC. Control circuit is used to prevent any electrical shock.
    10. Heavy fabricated structural work for long life.
    11. Double coated Painted structural items.

    Models

    ModelsLength (L)Width (W)Height (H)H1H2H3Car Category
    TLSPS400023005300170017001700Small cars
    TLSPM480025005600180018001800Med sized Sedan
    TLSPB550026006000200019001900Large cars / SUV's

    Note: Sizes can be varied as per the client requirements and site conditions. All dimensions in mm.

    Enquire about this system

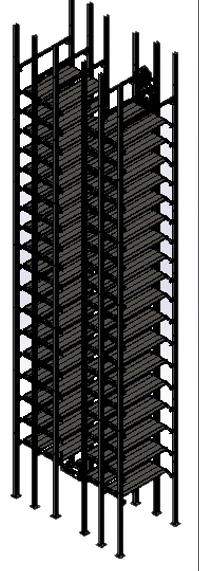

    System 06

    Tower

    Tower Parking

    Main character

    1. Less land area coverage and high usage rate of space.
    2. Steady operation without noise and fast operating speed to save parking and releasing time.
    3. Storage situation will be inspected by photoelectric devices. The operator will grasp each action of parking and releasing process by an intelligent button-pressing operation.
    4. Multi-protection devices are designed for anti-fall, anti-crashing, anti-overloading.

    Main technical specifications

    1. Elevating speed : 1.5 mtr/min.
    2. Sliding speed : 8 m/min.
    3. Size of cars : 5000 mm × 1850 mm × 1550 mm.
    4. Weight of cars : 2000 kgs.
    5. Max. collection time: 90s.
    6. Hoist or lower the drive way: Roller chain, steel wire rope (optional).
    7. Control way : PLC.
    8. Operational type : Turn keys, touch screen, RFID card (optional).

    A lifting channel is designed in the middle of the equipment and the parking spaces are divided in two sides. The car can go out or in when the case drops to the same level with the ground.

    Enquire about this system

    System 07

    Two/Three Level Pit Stack

    Dependent System

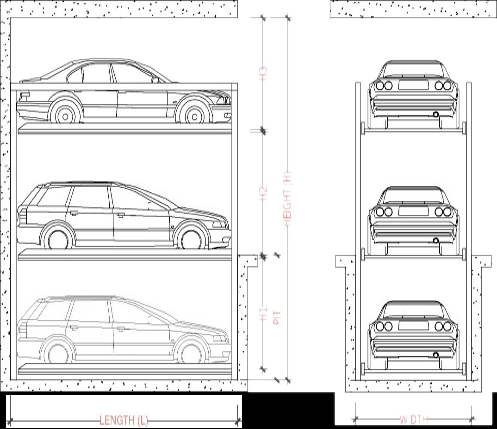

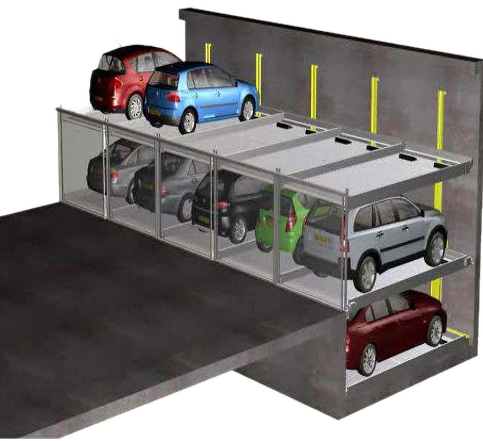

    Three level pit stack — Four Post Three Level Pit Stack Parking (Pit + Ground + 1)

    Benefits

    1. Three platforms per system.
    2. Four post structure system can be installed in door and out door.
    3. Hot dipped galvanized floor pallets to reduce dead weight & increase durability.
    4. Electromagnetic locking mechanism from start to end at each position.
    5. Remote switch box with keys/push button for easy operation.
    6. Dual height limit switches on each machine (extremely safe & reliable).
    7. Can be customized to suit a client's particular application.

    General specification

    1. Fully hydraulic based system.
    2. Load capacity 2000 Kg. of each pallet.
    3. Standard dimension for the unit is L 5500 × W 2500 × H 6200.
    4. Very less power consumption (2.2 kw./3 HP).
    5. Lifting time 35-45 sec. each pallet.
    6. Key operated to prevent unauthorized use.
    7. Totally enclosed Compact Power pack system.
    8. Imported Quality hydraulic valve to operate the system.
    9. 24v DC. Control circuit is used to prevent any electrical shock.
    10. Heavy fabricated structural work for long life.
    11. Double coated Painted structural items.

    Models

    ModelsSystem Length (L)Available length insideSystem Width (W)Inside widthHeight (H)H1H2H3Pit depthCar Category
    TLSPS450043002300210053001700180017001900Small cars
    TLSPM550053002500230056001800190018002000Med sized Sedan
    TLSPB550053002700250060001900200019002100Large cars / SUV's

    Note: Sizes can be varied as per the client requirements and site conditions. All dimensions in mm.

    Specifications for the two level pit stack are provided on enquiry.
